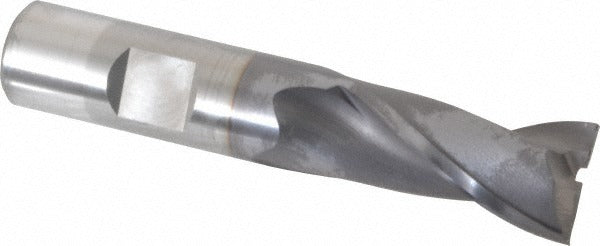

Osg 5732408 Square End Mill 11/16 in 2 Flute Vanadium Hss Ticn

Product Description

The OSG 5732408 is a square end mill designed for general-purpose milling operations in a wide range of ferrous and non-ferrous materials. Built from 3% vanadium high speed steel, it delivers improved wear resistance and edge retention compared to standard M2 HSS tooling. The 11/16-inch cutting diameter and 1-5/16-inch length of cut make it well suited for slotting, peripheral milling, and light profiling work. The TiCN coating adds surface hardness and reduces friction at the cutting edge. A 30-degree helix angle promotes smooth chip evacuation, and the centercutting geometry allows direct plunge entry without a pre-drilled hole.

This end mill fits standard vertical and horizontal CNC machining centers, knee mills, and manual milling machines with a 5/8-inch collet or tool holder. The 3-7/16-inch overall length keeps deflection low in typical setups. The Series 573 designation places it in OSG's regular-length, two-flute HSS line, which is commonly stocked in job shops and maintenance departments that machine mild steel, alloy steel, aluminum, brass, and plastics. Installation is performed by a machinist or toolroom technician.

Key Features

• 3% vanadium high speed steel construction for extended tool life over standard M2 HSS
• TiCN finish increases surface hardness and reduces built-up edge in steel applications
• Centercutting design allows direct plunge milling without pilot drilling
• 30-degree spiral flute helix promotes efficient chip flow and reduces cutting force
• Right-hand cut and right-hand flute orientation for standard spindle rotation
• Regular-length geometry minimizes overhang and deflection in standard depth-of-cut work

Compatibility

Designed as a standard replacement or stocking end mill for any milling machine or machining center accepting a 5/8-inch shank collet or end mill holder.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing the tool from the collet or holder. Ensure the shank is fully engaged to the minimum recommended depth in the holder and that the collet and nut are clean and free of debris before torquing. Verify runout with a dial indicator after tool changes on precision work to confirm proper seating.
