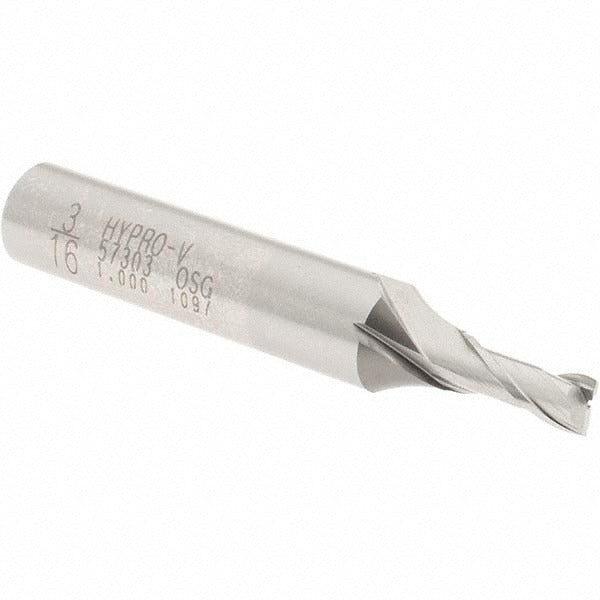

Osg 5730300 Square End Mill 3/16 in 2 Flute Vanadium Hss

Product Description

The OSG 5730300 is a square end mill designed for milling operations in metal and general-purpose machining applications. Built from 3% vanadium high speed steel, it delivers improved wear resistance compared to standard M2 HSS tooling. The cutter measures 3/16 inch in diameter with a 7/16 inch length of cut, a 3/8 inch shank diameter, and a 2-5/16 inch overall length. The two-flute spiral configuration with a 30-degree helix angle promotes chip evacuation and reduces cutting resistance. Centercutting geometry allows the tool to plunge directly into the workpiece. Right-hand cut and right-hand flute orientation conform to standard milling setups. No coating is applied, making the tool suitable for regrinding and general shop use.

This end mill is used in manual mills, knee mills, and CNC machining centers for slotting, profiling, and plunging cuts. The regular-length body fits standard tool holders and collets sized for a 3/8 inch shank. Its small diameter makes it well suited for tight-tolerance detail work, keyways, and narrow slots in ferrous and non-ferrous materials. Machinists, tool-and-die makers, and maintenance technicians commonly use this size in both production and job-shop environments.

Key Features

• 3% vanadium high speed steel construction for improved abrasion resistance over standard HSS
• 30-degree helix spiral flute promotes efficient chip evacuation
• Centercutting design allows direct plunge entry without pre-drilling
• Two-flute geometry maximizes chip clearance in slotting and pocket milling
• Right-hand cut and right-hand flute for standard spindle setups
• Uncoated finish supports easy regrinding and reconditioning

Compatibility

Designed for use with standard ER, DA, and straight-shank collet systems accepting a 3/8 inch shank. Belongs to OSG Series 573 regular-length square end mill tooling.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Confirm spindle speed and feed rate are appropriate for the workpiece material and cut depth before engaging the tool. Inspect the cutting edges for damage or wear before each use and remove the tool from service if chipping or deflection is observed.
