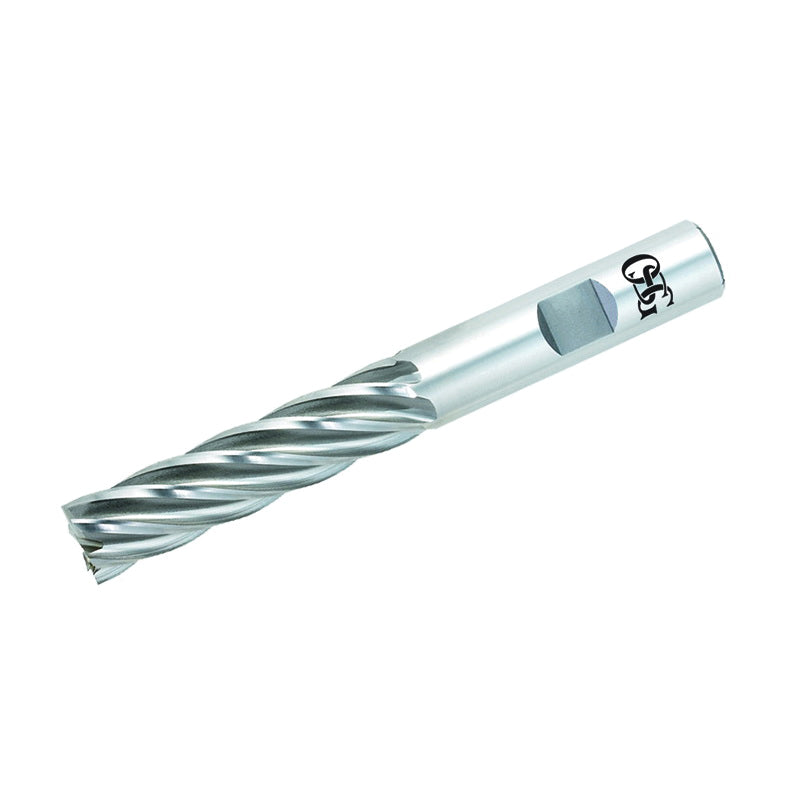

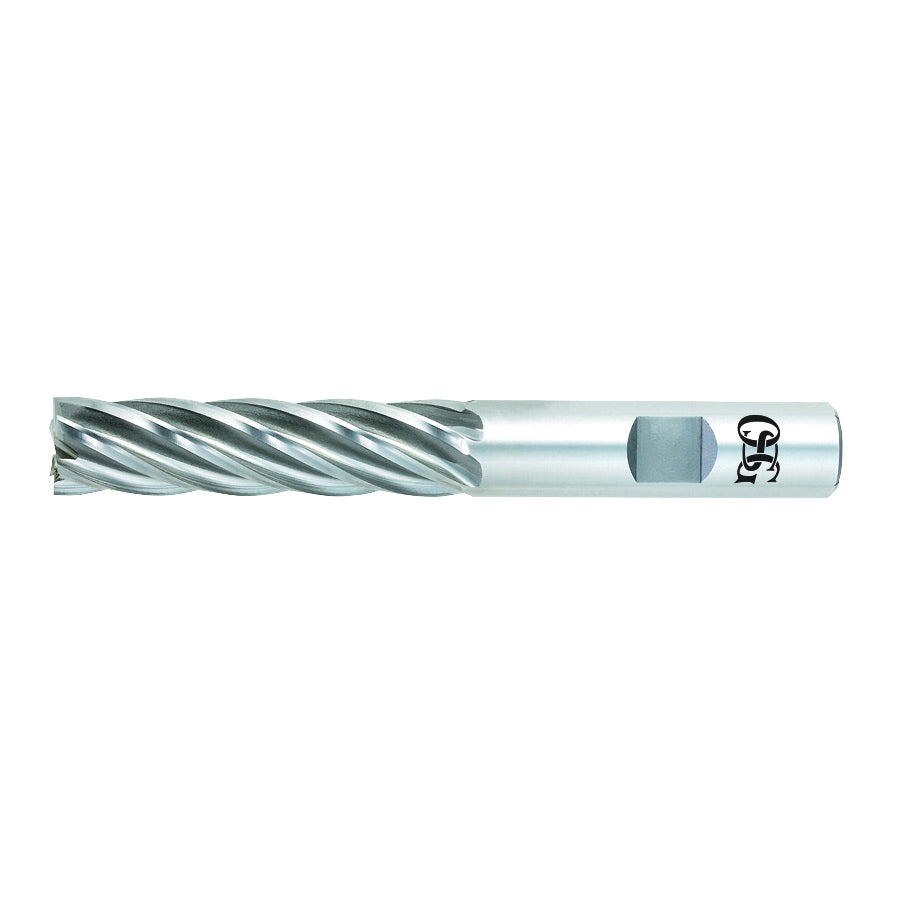

OSG 5469400 EML-CC Center Cutting High Performance Long Length Single End Square End Mill 2 in Dia Cutter

Product Description

The OSG 5469400 EML-CC is a center cutting high-performance long length single end square end mill designed for precision milling. Built from HSS-CO material, this end mill features six flutes and provides effective cutting performance in various applications. It has a diameter of two inches and an overall length of nine and three-quarters inches, making it ideal for deep milling tasks.

• Material: HSS-CO
• Diameter: 2 inches
• Number of Flutes: 6

Product Highlights

This end mill offers a right-hand cutting direction with a 30-degree helix angle. It is engineered for optimal performance in machining tasks where precision is critical.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG5469400

Technical Specifications

• Type: Center Cutting High Performance Long Length Single End
• Cutter Diameter: 2 inches
• Length of Cut: 6 inches
• Overall Length: 9-3/4 inches
• Shank Diameter: 2 inches
• Number of Flutes: 6
• Helix Angle: 30 degrees
• Finish: Bright
