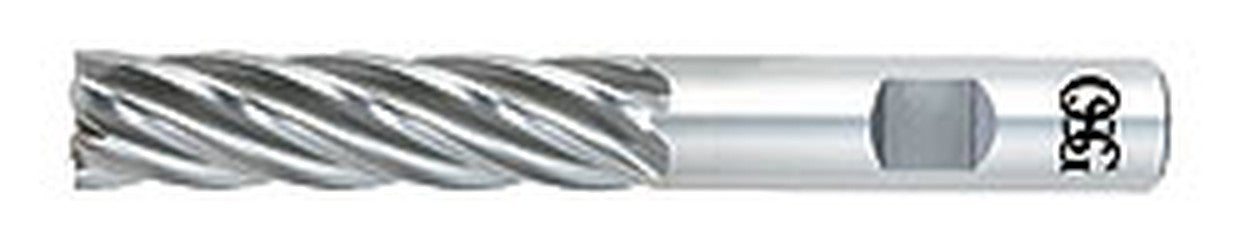

OSG 5460300 Center Cutting Single End Square End High Performance End Mill, 1/4 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/16 in OAL

Product Description

The OSG 5460300 is a center cutting single end square end high performance end mill. This tool features a diameter of one-quarter inch and an overall length of three and one-sixteenth inches. The cutter is made from cobalt and has a bright finish. It includes four flutes for improved cutting capabilities, making it suitable for various milling applications.

• Diameter: 0.2500 inches (1/4 inch)
• Shank Diameter: 0.3750 inches (3/8 inch)
• Flute Length: 1.2500 inches (1 1/4 inch)

Product Highlights

This end mill is ideal for precision milling tasks, providing efficient cutting with reduced wear. The right-hand cutting direction and a thirty-degree helix angle facilitate effective chip removal and improved performance.

Product Information

Standard Information

• Brand: OSG
• Material: Cobalt/HSS

Technical Specifications

• Type: Center Cutting Single End Square End
• Finish: Bright
• Series: 546
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Helix Angle: 30 degrees
• Length of Cut: 1-1/4 inches
• Overall Length: 3-1/16 inches
• Shank Diameter: 3/8 inches
• Cutter Diameter: 1/4 inches
