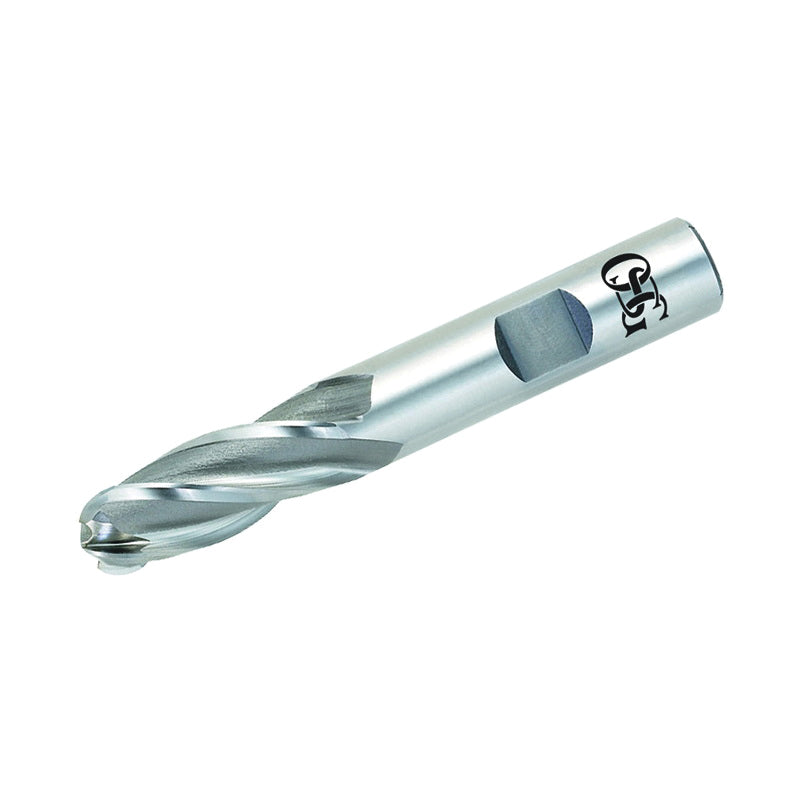

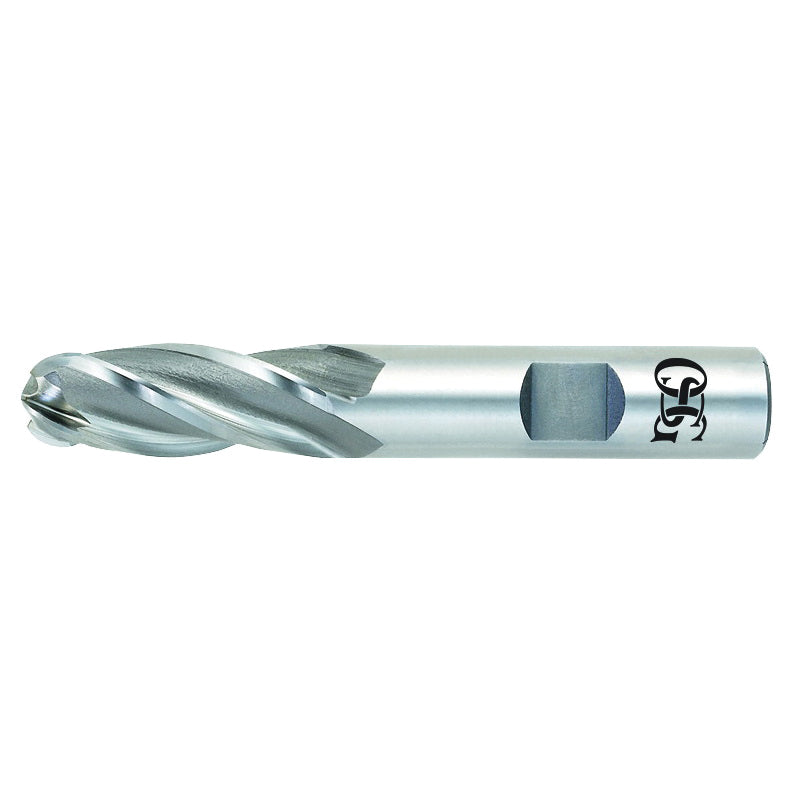

OSG 5440500 3/8 X 3/8 4FL M42 CC BALL SEM L544

Product Description

The OSG 5440500 is a 3/8 X 3/8 four-flute ball nose end mill. This tool is made from cobalt material and features a bright finish. It is suitable for high-performance applications requiring precise milling. The product has a diameter of three-eighths inches and a shank diameter of three-eighths inches. The flute length is three-fourths inches, and the overall length is two and one-half inches. This end mill is designed for center cutting, making it ideal for milling deeper slots or pockets.

• Material: Cobalt
• Number of Flutes: 4
• Cutting Direction: Right Hand

Product Highlights

High-performance milling tool designed for accuracy in various cutting applications.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-5440500

Technical Specifications

• Diameter: 0.3750 inches (3/8)
• Shank Diameter: 0.3750 inches (3/8)
• Flute Length: 0.7500 inches (19.050 mm) (3/4)
• Overall Length: 2.5000 inches (63.500 mm) (2 1/2)
• End/Corner Shape: Ball End
• Coating/Finish: Uncoated
• Helix Angle: 30 degrees
• Cutter Type: Center Cutting High Performance Regular Length Single End
