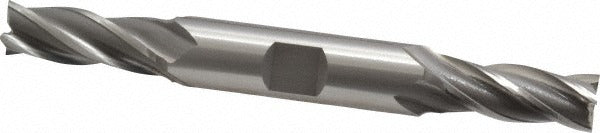

Osg 5429500 Square End Mill 13/32 in 4-flute Cobalt

Product Description

The OSG 5429500 is a cobalt square end mill designed for milling ferrous and hard materials in metalworking applications. It features a 13/32 inch (0.4063 inch) cutting diameter, a 1 inch length of cut, and a 1/2 inch shank diameter, with an overall length of 4-1/8 inches. Built from M42 cobalt high-speed steel, this double-end mill runs a 4-flute spiral configuration with a 30-degree helix angle and right-hand cut and flute direction. It ships uncoated and is sized as a regular-length tool. Licensed machinists, tool-and-die makers, and CNC mill operators are the primary users of this end mill.

This end mill fits production and job-shop milling environments where cobalt tooling is preferred over carbide for its toughness and resistance to shock loading. The double-end design extends tool life across repetitive slotting, profiling, and peripheral milling passes on steel, alloy steel, and other ferrous workpieces. The 30-degree helix promotes chip evacuation and smooth cutting action in general-purpose milling setups. It is part of the OSG Series 542 end mill family. Note that this tool is not center-cutting and is not intended for plunge operations.

Key Features

• M42 cobalt construction for improved heat and wear resistance over standard HSS
• Double-end design provides two usable cutting ends per tool
• 30-degree helix angle supports chip flow and reduces cutting forces
• 4-flute spiral geometry suited for slotting and peripheral milling in ferrous materials
• Right-hand cut and right-hand flute direction for standard milling spindle use
• Uncoated finish — compatible with most cutting fluids and lubricants without coating compatibility concerns

Compatibility

Designed as an OEM-style replacement and direct-fit tooling option within the OSG Series 542 end mill line. Fits any standard milling machine or CNC machining center with a 1/2 inch collet, end mill holder, or Weldon-style tool holder.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Seat the 1/2 inch shank fully into the tool holder and torque the set screw or collet nut per the tool-holder manufacturer specification. Because this end mill is not center-cutting, do not use it for direct plunge entry into solid material.
