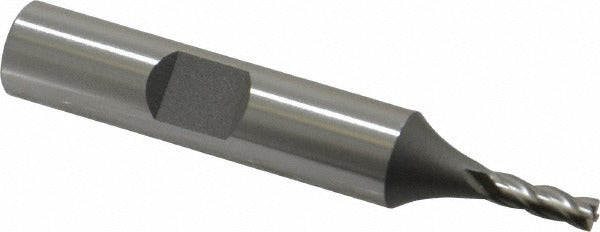

Osg 5410100 Square End Mill 1/8 in 4 Flute Cobalt

Product Description

The OSG 5410100 is a 4-flute square end mill designed for general milling operations in ferrous and non-ferrous materials. Built from M42 cobalt high-speed steel, it withstands higher cutting temperatures than standard M2 HSS tooling, making it well suited for harder steels and stainless applications. The 1/8 inch cutting diameter pairs with a 3/8 inch length of cut and a 30-degree helix angle that promotes efficient chip evacuation and smooth cutting action. The uncoated finish keeps regrinding simple. This tool is installed by machinists and tool-and-die professionals in manual mills and CNC machining centers.

This end mill fits standard 3/8 inch collets or end mill holders and is appropriate for slot milling, peripheral milling, and light plunging operations. The centercutting geometry allows direct plunge entry without a pre-drilled hole. Series 541 from OSG targets regular-length applications where rigidity is a priority over extended reach. It is commonly used in job shops, maintenance machining, and production environments handling steel, alloy steel, cast iron, and similar materials.

Key Features

• M42 cobalt construction for elevated heat resistance compared to standard HSS
• 4-flute spiral geometry for higher feed rates and improved surface finish
• 30-degree helix angle promotes chip flow and reduces cutting forces
• Centercutting design allows direct plunge milling without a pilot hole
• Right-hand cut, right-hand flute — compatible with standard spindle rotation
• Uncoated finish simplifies resharpening and regrinding in the field

Compatibility

Designed for use in any milling machine or machining center equipped with a 3/8 inch collet, shrink-fit holder, or end mill adapter. Part of the OSG Series 541 regular-length square end mill family.

Installation Notes

A licensed machinist or trained CNC operator should install and operate this tooling. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the 3/8 inch shank fully in the holder and torque the retention mechanism to the holder manufacturer's specification. Verify runout with a dial indicator before beginning a cut, as excessive runout accelerates tool wear and degrades surface finish.
