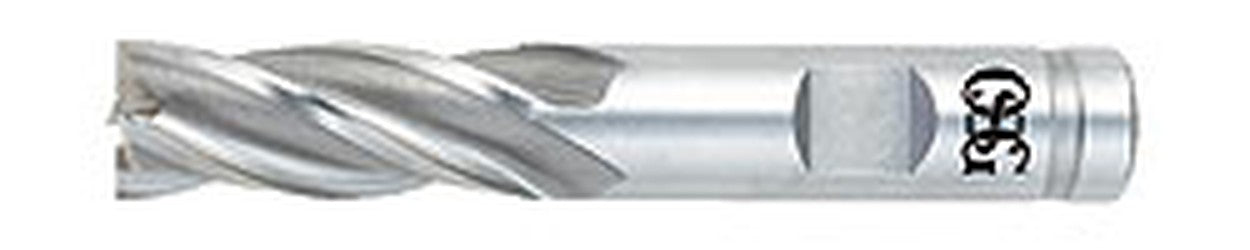

OSG 5401700 High Performance Non-Center Cutting Regular Length Single End Square End Mill, 19/32 in Dia Cutter, 1-3/8 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-3/8 in OAL

Product Description

The OSG 5401700 is a high-performance non-center cutting square end mill made of durable cobalt material. It features a diameter of nineteen thirty-seconds of an inch, a shank diameter of one-half inch, and an overall length of three and three-eighths inches. The tool has four flutes and is suitable for a variety of milling applications.

• Material: Cobalt
• Number of Flutes: 4
• Coating/Finish: Uncoated

Product Highlights

This end mill is effective for milling plastic components and die casting molds. The square end design ensures accurate cutting and contouring, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: OSG
• MPN: 5401700

Technical Specifications

• Material: Cobalt
• Diameter: 0.5938 (19/32 in)
• Shank Diameter: 0.5000 (12.700 mm) (1/2 in)
• Flute Length: 1.3750 (34.925 mm) (1 3/8 in)
• Overall Length: 3.3750 (85.725 mm) (3 3/8 in)
• End/Corner Shape: Square End
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
