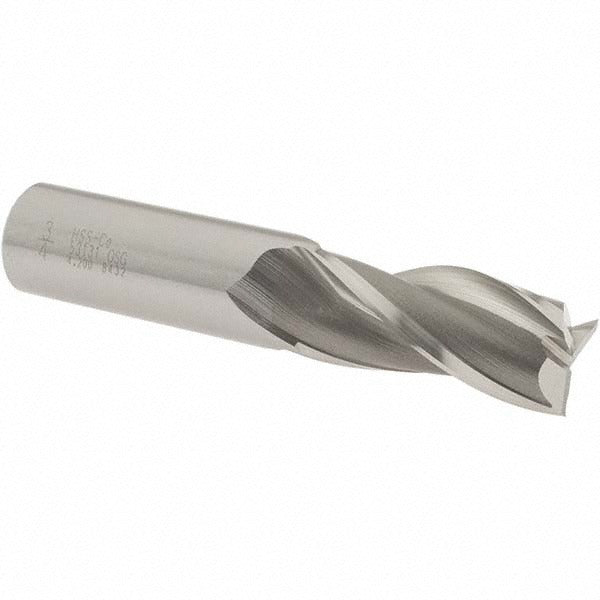

Osg 5313100 Square End Mill 3/4 in 3 Flute Cobalt

Product Description

The OSG 5313100 is a cobalt square end mill designed for general-purpose milling in ferrous and non-ferrous metals. It features a 0.75-inch cutting diameter with a 1.625-inch length of cut, a 0.75-inch shank diameter, and an overall length of 3.875 inches. Constructed from M42 cobalt high-speed steel, it delivers improved heat and wear resistance compared to standard HSS tooling. The three-flute geometry and 30-degree helix angle promote efficient chip evacuation and smooth cutting action. This end mill ships uncoated and is suited for shops running conventional milling operations where cobalt-grade tooling is specified.

This end mill is used in vertical and horizontal milling machine setups for slotting, profiling, and peripheral milling operations. The regular-length configuration and centercutting design allow both plunge and side-milling entries. It is appropriate for production and maintenance machining environments where a reliable cobalt end mill is preferred over carbide for interrupted cuts or tougher setups. The right-hand cut and right-hand spiral flute are standard for conventional and climb milling on most CNC and manual mills.

Key Features

• M42 cobalt HSS construction for enhanced heat resistance and tool life in ferrous materials
• Three-flute spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry enables direct plunge entry without a pilot hole
• Right-hand cut, right-hand flute — compatible with standard spindle rotation
• Uncoated finish suitable for re-sharpening and general-purpose applications
• Regular-length series for rigid setups with minimal overhang

Compatibility

Designed for use in milling machines and machining centers accepting a 0.75-inch straight shank, including ER and side-lock collet systems sized for 3/4-inch tooling. Part of OSG Series 531.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe, locked-out state before loading or changing tooling. Secure the shank with the appropriate collet or end mill holder to the full recommended engagement depth. Verify runout with a dial indicator before beginning the cut, as excessive runout accelerates edge wear on cobalt tooling.
