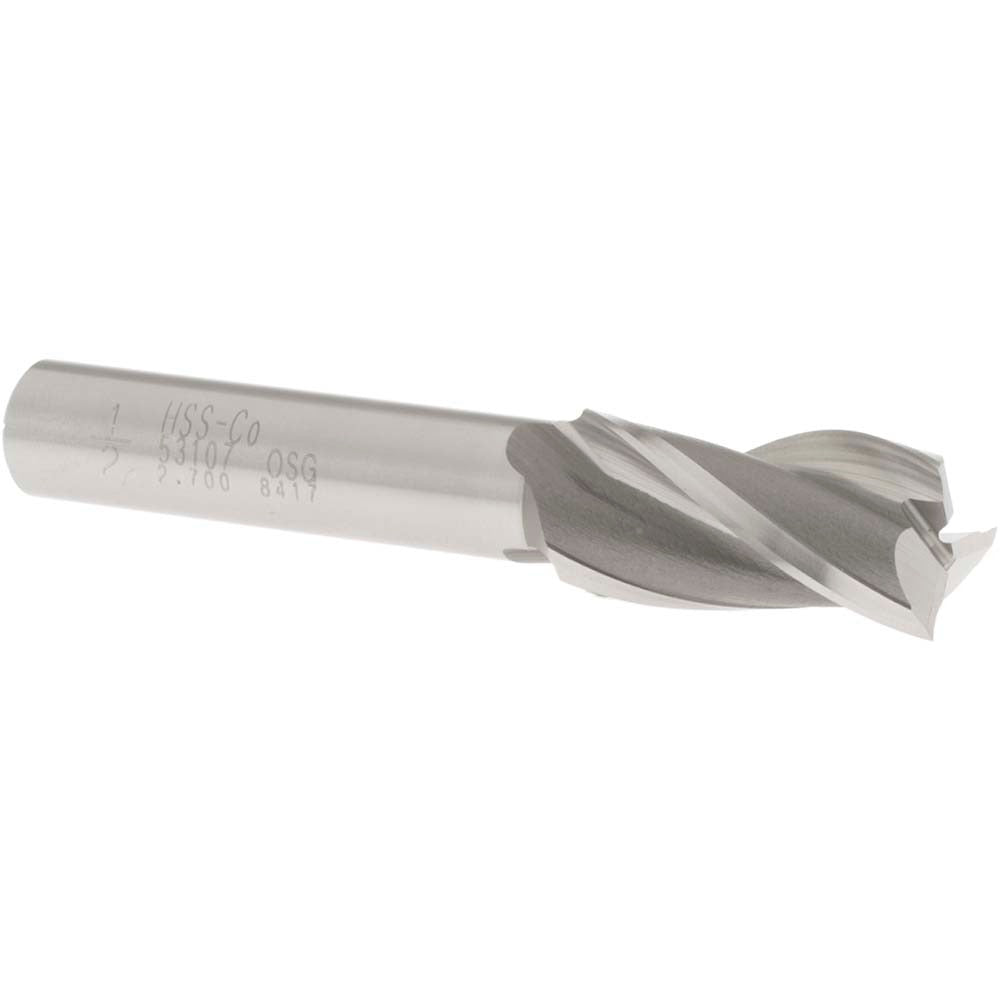

Osg 5310700 Square End Mill 1/2 in 3 Flute Cobalt

Product Description

The OSG 5310700 is a cobalt square end mill designed for milling ferrous and difficult-to-machine materials in metalworking applications. Built from M42 cobalt high-speed steel, this single-end tool features a 0.5 inch cutting diameter, a 1 inch length of cut, and a 3/8 inch shank diameter with an overall length of 2-11/16 inches. The three-flute geometry and 30-degree right-hand spiral helix provide a balance of chip evacuation and cutting stability. The centercutting design allows plunge entry directly into the workpiece. Machinists and tool-and-die professionals install this end mill on manual and CNC milling machines for slotting, profiling, and pocket operations.

This end mill is suited for general-purpose milling in job shop, production, and maintenance environments. The M42 cobalt grade handles elevated cutting temperatures better than standard M2 HSS, making it appropriate for stainless steels, alloy steels, and other harder ferrous workpiece materials. The Series 531 regular-length configuration fits standard tool holders and collet chucks used in knee mills and vertical machining centers. It runs uncoated, which simplifies resharpening when needed.

Key Features

• M42 cobalt construction for improved heat and wear resistance over standard HSS
• Three-flute design balances chip clearance and tool rigidity for ferrous materials
• 30-degree right-hand helix with right-hand cut for smooth, efficient chip flow
• Centercutting geometry allows direct plunge milling without a pilot hole
• Uncoated finish simplifies resharpening on standard tool grinders
• Series 531 regular length fits standard collet chucks and end mill holders

Compatibility

Designed as an OEM-style replacement or standard tooling selection for use in milling machines accepting a 3/8 inch shank diameter end mill holder or collet.

Installation Notes

Installation is performed by machinists or CNC operators. Power down and lock out the machine spindle before seating or removing the tool from the holder. Ensure the shank is fully seated and the set screw or collet nut is properly secured before operation. Follow the machine manufacturer and tooling manufacturer recommendations for speeds and feeds appropriate to the workpiece material.
