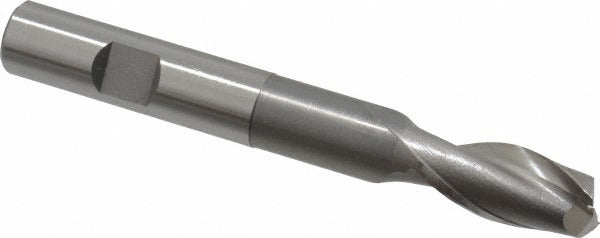

Osg 5271100 Square End Mill 0.5 in 2 Flute Cobalt

Product Description

The OSG 5271100 is a cobalt square end mill designed for general-purpose milling operations in ferrous and high-temperature alloy materials. Built to M42 cobalt high-speed steel specification, it delivers improved heat and wear resistance compared to standard HSS tooling. The cutter features a 2-flute, right-hand spiral configuration with a 30-degree helix angle, a 0.5-inch cutting diameter, and a 1-inch length of cut. It is centercutting, allowing plunge entry directly into the workpiece. Licensed machinists and toolroom operators use this end mill in vertical and horizontal milling machines as well as machining centers.

The OSG 5271100 is suited for slotting, peripheral milling, and plunge cutting in both manual and CNC applications. The 2-flute design provides generous chip clearance, making it a practical choice for softer steels, aluminum, and general ferrous stock where chip evacuation is a priority. The 0.5-inch shank diameter fits standard ER and end mill holders with 1/2-inch bore. The Series 527 designation places this tool in OSG's regular-length, uncoated cobalt line.

Key Features

• M42 cobalt construction for improved heat resistance over standard HSS
• 2-flute spiral configuration promotes efficient chip evacuation in slotting cuts
• 30-degree right-hand helix angle balances cutting action and tool stability
• Centercutting geometry enables direct plunge milling without pre-drilling
• Uncoated finish suitable for use with cutting fluid in ferrous applications
• Extended reach design with 2.25-inch reach length for deeper cavity access

Compatibility

Designed for use with standard 1/2-inch bore end mill holders, ER32 collet chucks, and similar toolholding systems on vertical mills and CNC machining centers. Part of OSG Series 527 regular-length cobalt end mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is locked out before changing tooling. Secure the shank to the full recommended engagement depth in the holder and torque set screws per the toolholder manufacturer's specification. Confirm runout with a dial indicator before taking the first cut, and apply appropriate cutting fluid for the workpiece material.
