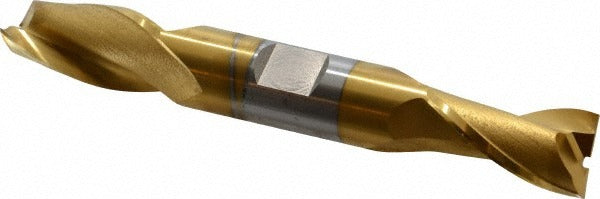

Osg 5222105 Square End Mill 5/8 in 2 Flute Cobalt Tin

Product Description

The OSG 5222105 is a double-end square end mill designed for precision milling of ferrous and non-ferrous metals in machining centers and manual mills. Built from M42 cobalt high-speed steel, it delivers heat and wear resistance well above standard HSS tools. The TiN (titanium nitride) coating further extends tool life by reducing friction and increasing surface hardness. At 0.625 inches in diameter with a 1.125-inch length of cut and a 4.5-inch overall length, this tool fits standard 5/8-inch collets and toolholders. It is installed and operated by machinists and tool-and-die professionals in job shop, maintenance, and production environments.

The 5222105 is suited for slotting, profiling, and peripheral milling operations on steel, stainless, cast iron, and high-temperature alloys where standard M2 HSS tooling runs short on tool life. Its centercutting geometry allows plunge milling in addition to lateral passes. The 30-degree right-hand spiral helix promotes smooth chip evacuation and reduces chatter during interrupted cuts. The double-end configuration provides a second cutting end, extending the usable life of each tool before replacement.

Key Features

• M42 cobalt HSS construction for elevated heat resistance and hardness retention
• TiN coating reduces friction and extends cutting edge life
• Centercutting design allows plunge entry without a pre-drilled hole
• 30-degree right-hand spiral flute for efficient chip evacuation
• Double-end configuration doubles usable tool life per piece
• Regular length geometry fits standard collet and toolholder setups

Compatibility

Designed as an OEM-style replacement or direct-use end mill for machining centers, knee mills, and manual mills accepting a 5/8-inch shank diameter in the OSG Series 522 product line.

Installation Notes

End mills should be installed by qualified machinists following standard toolholding procedures. Secure the shank fully into the collet or toolholder to the recommended engagement depth before tightening. Inspect the collet and toolholder for runout before use, as excessive runout accelerates edge wear and reduces dimensional accuracy. Never exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and depth of cut.
