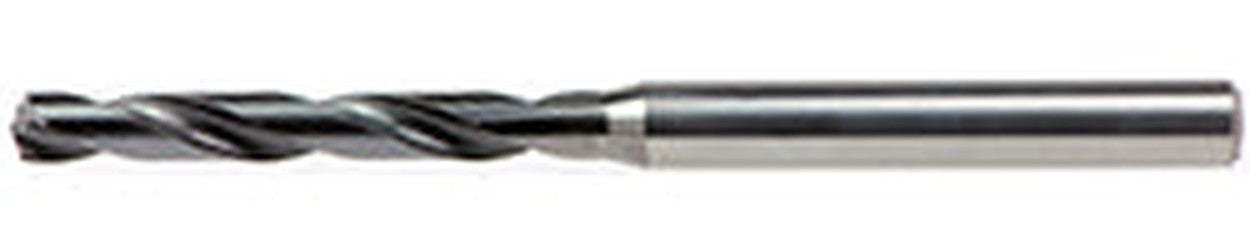

OSG 521039012 ADO-SUS Jobber Length Drill Bit 25/64 in

Product Description

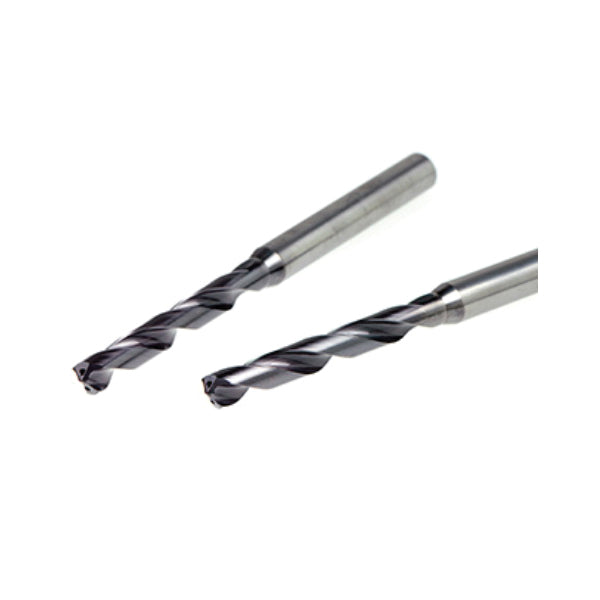

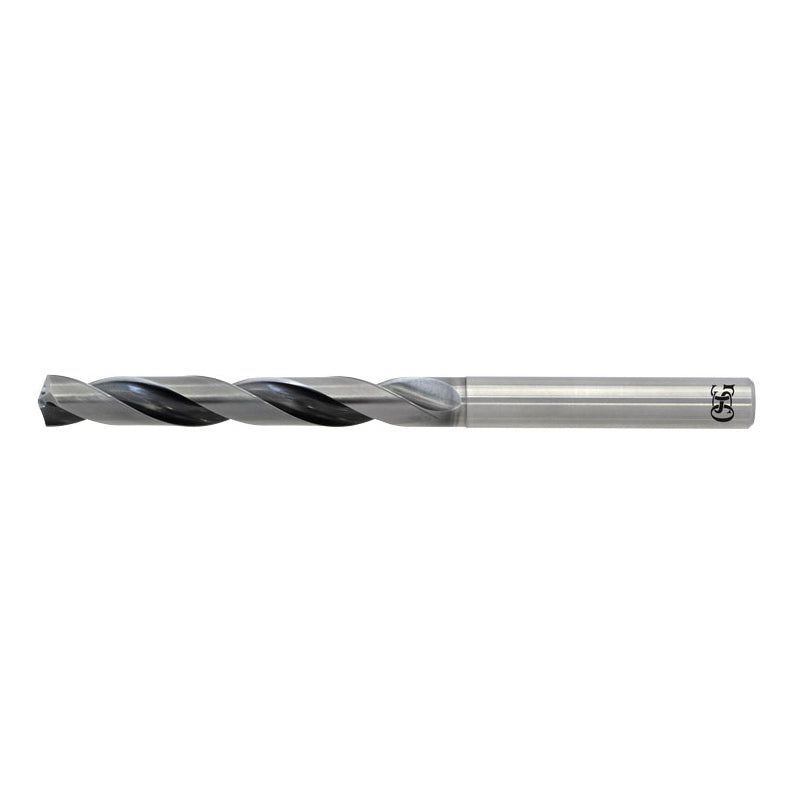

The OSG 25/64 EXOCARB ADO-SUS-5D is a high-performance drill bit designed for cutting through various materials. This drill bit features a diameter of twenty-five sixty-fourths of an inch and incorporates advanced carbide material to enhance durability. It is ideal for applications in stainless steel and other tough materials, providing efficient drilling performance.

• Designed for high-speed drilling in tough materials.
• Features an overall length of one hundred thirty-six millimeters.
• Built with two spiral flutes for effective chip removal.

Product Highlights

This drill bit is part of OSG's premium line known for its exceptional performance and longevity in demanding applications.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 25/64 inch (9.920 mm)
• Shank Diameter: 7/16 inch (11.113 mm)
• Flute Length: 80 mm (3.1496 inches)
• Overall Length: 136 mm (5.3543 inches)
• Point Angle: 140 degrees
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Applicable Materials: 1010/1018 Low Carbon Steel, 1035/1045 Medium Carbon Steel, Cast Iron, and more
