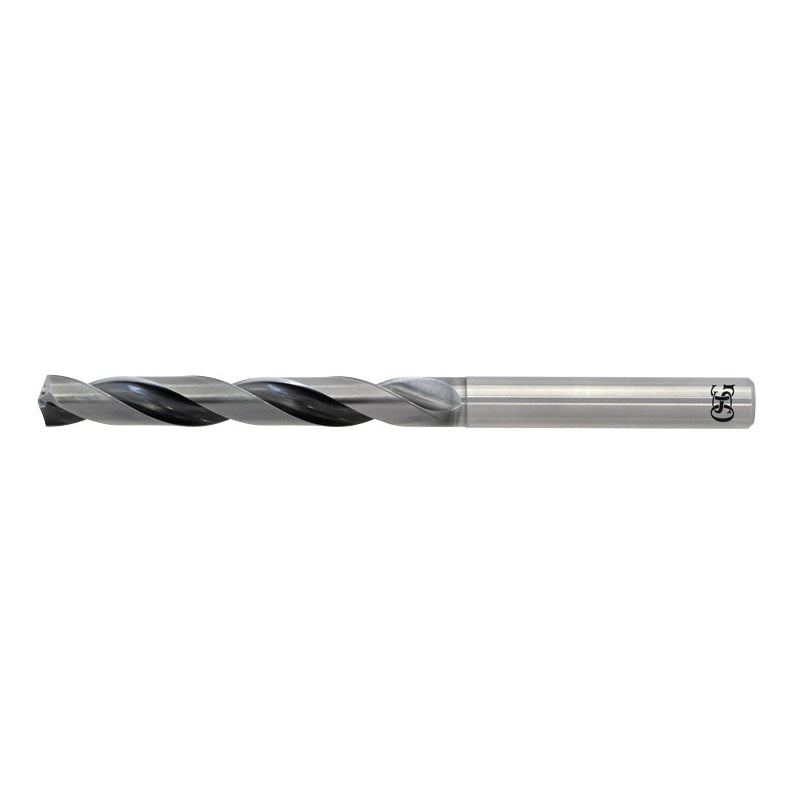

OSG 521032812 OSG 21/64 EXOCARB ADO-SUS-5D Drill Bit

Product Description

The OSG 21/64 EXOCARB ADO-SUS-5D is a solid carbide drill bit designed for high performance in drilling applications. This product has an overall length of one hundred twenty-eight millimeters with a flute length of sixty-seven millimeters. The drill features a diameter of twenty-one sixty-fourths inches.

• Material: Carbide
• Flute Type: Spiral
• Point Type: R-Thinning

Product Highlights

The OSG 21/64 drill bit is engineered for drilling in tough materials such as stainless steel and high carbon steels. Its advanced geometry and WXL coating enhance performance and prolong tool life.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-521032812

Technical Specifications

• Diameter: 21/64 inches (0.3281)
• Shank Diameter: 3/8 inches (0.3750)
• Flute Length: 67 millimeters (2.6378)
• Overall Length: 128 millimeters (5.0394)
• Number of Flutes: 2
• Point Angle: 140 degrees
• Cutting Depth: 5 times the diameter
• Cutting Direction: Right Hand
