OSG 521028112 ADO-SUS 5D Drill Bit 9/32 Inch

Product Description

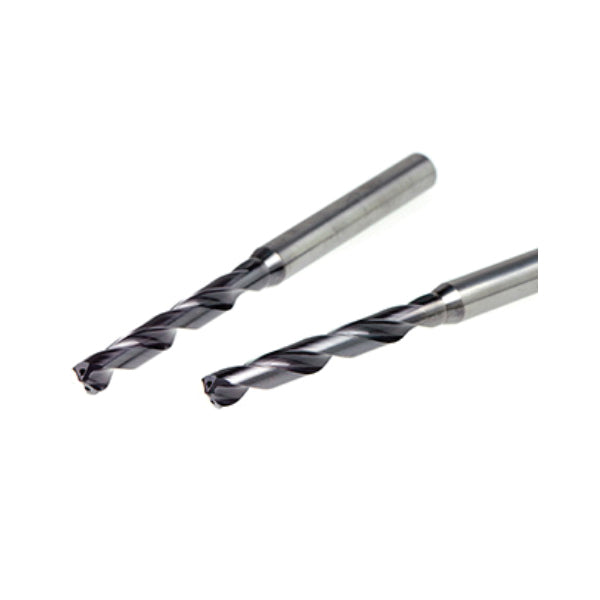

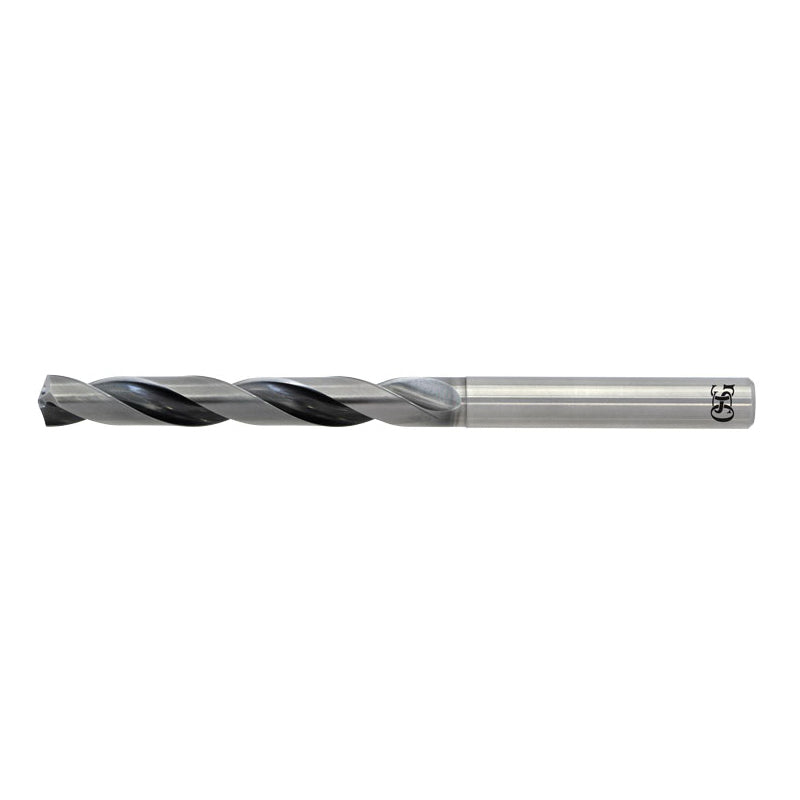

The OSG 9/32 EXOCARB ADO-SUS-5D is a drill bit known for its performance and construction. This drill bit features a diameter of 9/32 inches and is made from carbide material, providing durability for various applications.

• Carbide construction for long-lasting use
• Flute length of fifty-eight millimeters, allowing for deep drilling
• Overall length of one hundred eighteen millimeters, suitable for standard applications

Product Highlights

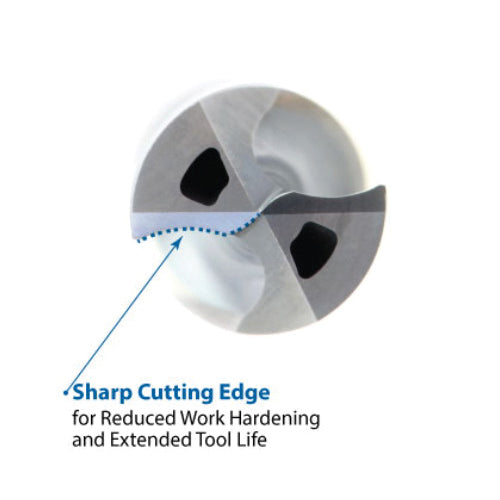

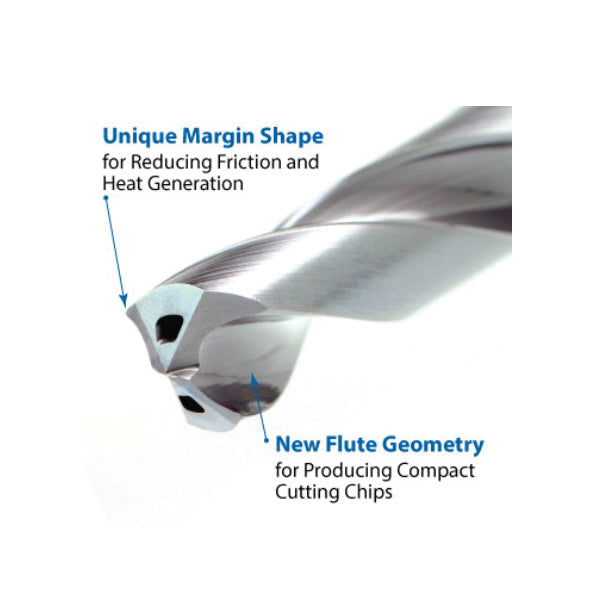

This drill bit is designed for precision drilling in materials including stainless steel and various carbon steels. Its construction allows for effective chip removal and reduced heat buildup, contributing to extended tool life.

Product Information

Standard Information

• Brand: OSG
• MPN: 521028112

Technical Specifications

• Material: Carbide
• Diameter: 9/32 inches (7.144 mm)
• Shank Diameter: 5/16 inches (7.938 mm)
• Flute Length: 58 mm
• Overall Length: 118 mm
• Number of Flutes: 2
• Point Angle: 140 degrees
• Cutting Depth: 5X D
