OSG 5210200 3/16 X 3/8 2FL BALL SEM L521

Product Description

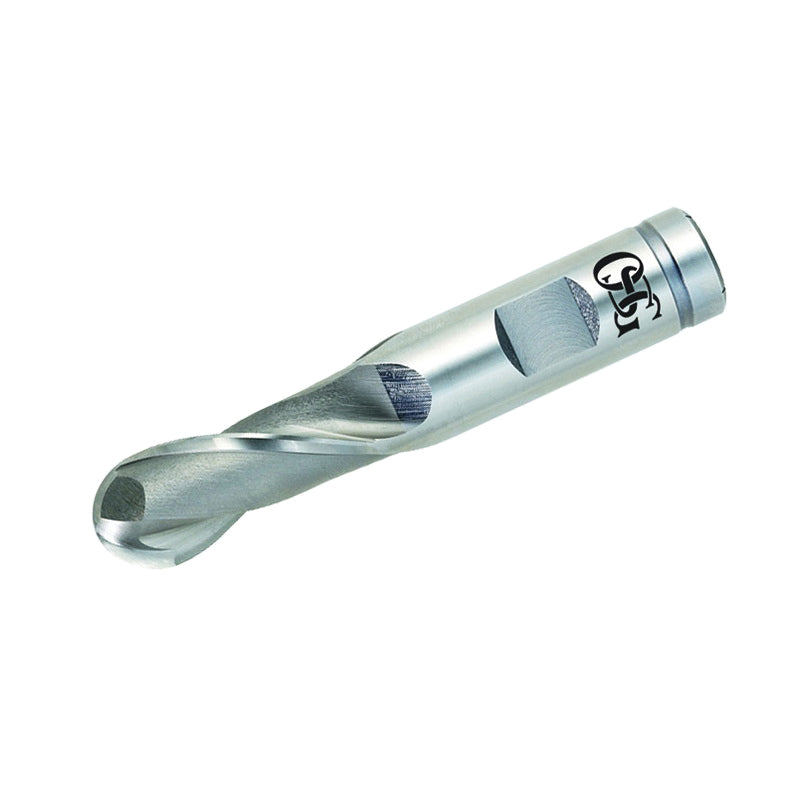

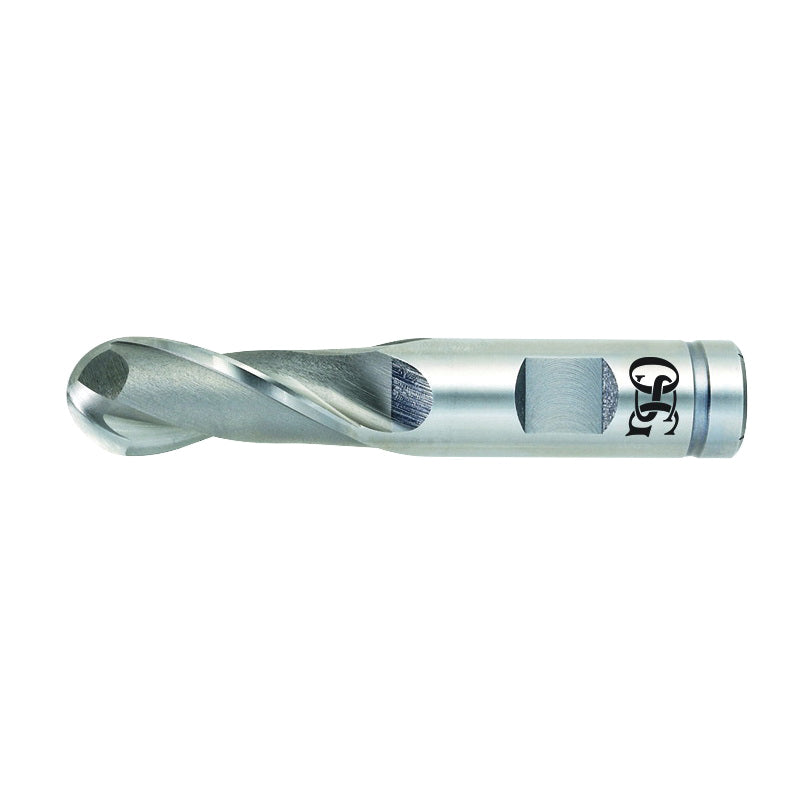

The OSG 5210200 is a ball end mill designed for precision machining. It features a diameter of three sixteenths of an inch and has two flutes for efficient cutting. The overall length is two and three eighths of an inch, with a flute length of half an inch. This end mill is suitable for creating smooth contours and shapes in various materials.

• Diameter: 3/16 inch
• Flute Length: 0.5 inch
• Material: Cobalt

Product Highlights

This product is ideal for machining operations that require a smooth finish. The cobalt material offers improved durability and performance over standard high-speed steel. The ball end design allows for greater accuracy in creating rounded or contoured features in workpieces.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-5210200

Technical Specifications

• Diameter: 0.1875 (4.763 mm)
• Shank Diameter: 0.3750 (3/8)
• Flute Length: 0.5000 (12.700 mm)
• Overall Length: 2.3750 (2 3/8)
• # of Flutes: 2
• End/Corner Shape: Ball End
• Coating/Finish: Uncoated
