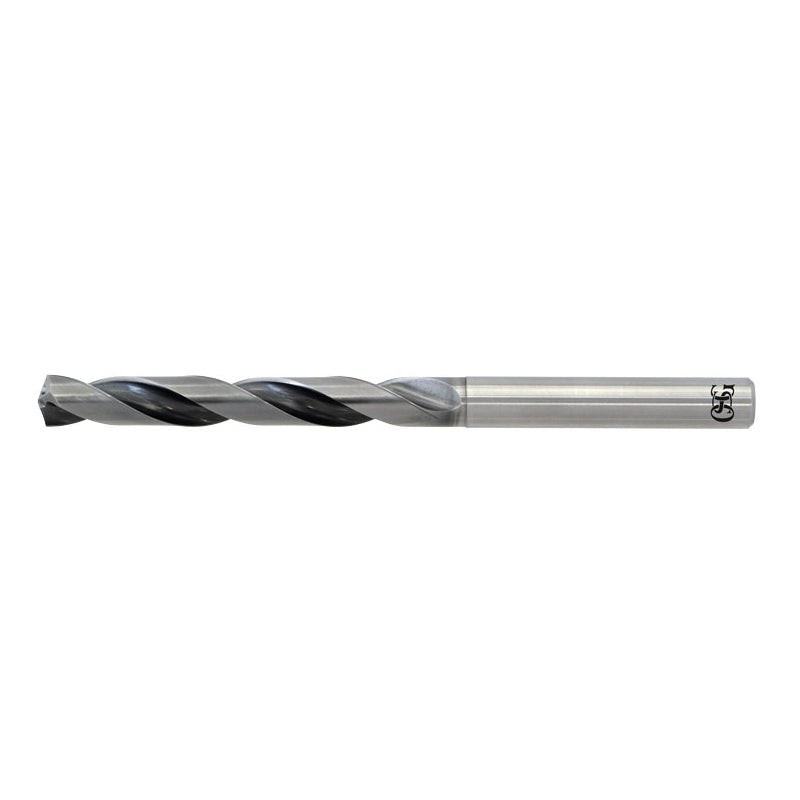

OSG 521017112 ADO-SUS 11/64 EXOCARB Advanced Performance Jobber Length Drill Bit

Product Description

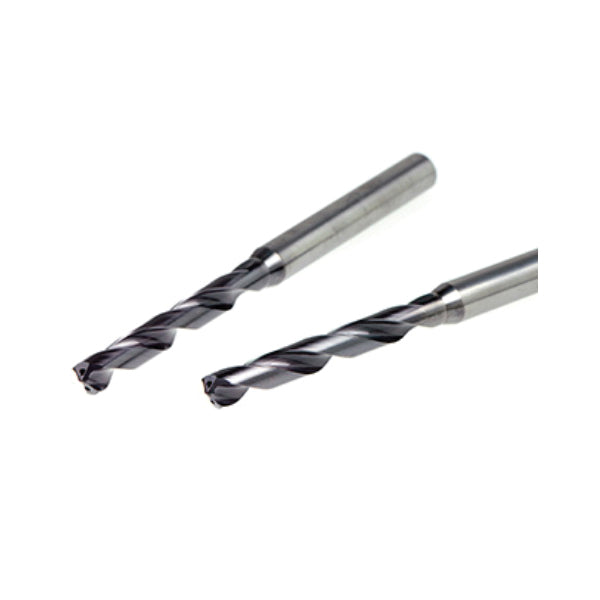

OSG 11/64 EXOCARB ADO-SUS-5D is a carbide drill bit designed for high-performance applications. It features a diameter of eleven sixty-fourths of an inch with a shank diameter of three sixteenths of an inch. The flute length is forty millimeters while the overall length is ninety-five millimeters.

• Material: Carbide
• Point Type: R-Thinning
• Drilling Capability: Designed for multiple types of steel and alloys

Product Highlights

This drill bit is engineered for advanced performance in stainless steel drilling tasks. It utilizes OSG's WXL coating technology for enhanced wear resistance and longer tool life.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-521017112

Technical Specifications

• Diameter: 11/64 inch (4.365 mm)
• Shank Diameter: 3/16 inch (4.763 mm)
• Flute Length: 40.000 mm
• Overall Length: 95.000 mm
• Point Angle: 140 degrees
• Flute Type: Spiral
• Number of Flutes: 2
• Cutting Direction: Right Hand
