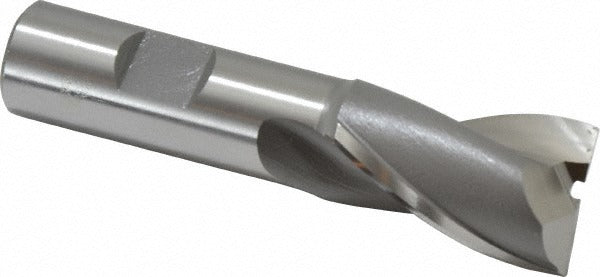

Osg 5203500 Square End Mill 31/32 in 2 Flute Cobalt

Product Description

The OSG 5203500 is a cobalt square end mill designed for milling operations that demand toughness and heat resistance beyond standard high-speed steel tooling. Built to Series 520 specifications, this end mill features a 31/32-inch cutting diameter, a 1-1/2-inch length of cut, and a 3/4-inch shank diameter, with an overall length of 3-3/4 inches. The M42 cobalt steel construction handles harder workpiece materials and elevated cutting temperatures that would degrade conventional HSS tools. With 2 flutes and a 30-degree helix angle, it provides efficient chip evacuation and a balanced cut in a wide range of milling applications. Installed and operated by machinists and toolmakers in production and job-shop environments.

This end mill is suited for peripheral and slot milling in ferrous and non-ferrous materials where cobalt tooling is preferred over carbide for toughness. The centercutting geometry allows direct plunge entry into the workpiece without a pre-drilled hole. Right-hand cut and right-hand spiral flute configuration is standard for conventional CNC and manual milling machines. The regular-length body and 3/4-inch shank make it compatible with standard milling machine spindles and end mill holders used in vertical and horizontal machining centers.

Key Features

• M42 cobalt steel construction for superior heat and wear resistance compared to standard HSS
• 31/32-inch cutting diameter with 1-1/2-inch length of cut for medium-depth milling passes
• 2-flute design with 30-degree helix angle promotes efficient chip flow and smooth cutting action
• Centercutting capable — allows direct plunge milling without pilot hole
• Right-hand cut, right-hand flute, spiral configuration for standard milling setups
• Uncoated finish; Series 520 regular-length geometry

Compatibility

Designed as an OEM-style cutting tool for use in standard 3/4-inch end mill holders, collet chucks, and milling machine spindles on CNC machining centers and manual knee mills.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Secure the shank fully into the tool holder to the recommended minimum engagement depth before tightening. Power down and lock out the spindle before changing tooling. Do not exceed the tool manufacturer's recommended speeds and feeds for the workpiece material and cut depth being used.
