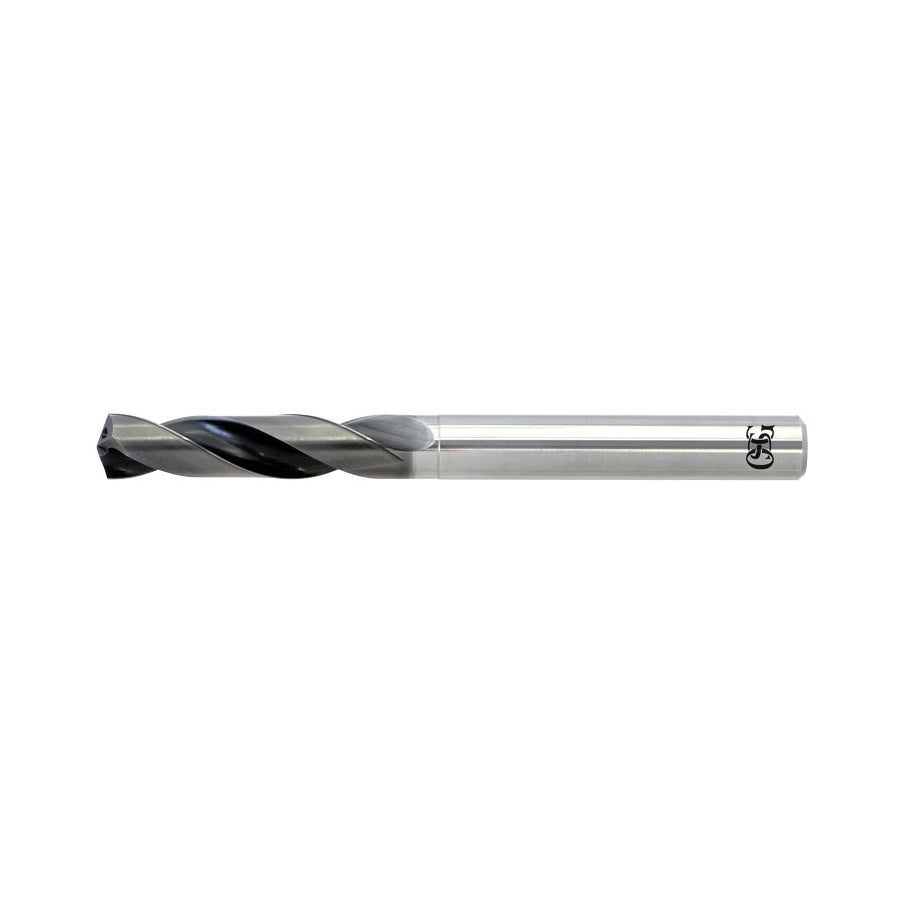

OSG 520045312 OSG 29/64 EXOCARB ADO-SUS-3D High Performance Drill Bit

Product Description

The OSG 29/64 EXOCARB ADO-SUS-3D is a high-performance drill bit designed for effective drilling in challenging materials. This drill bit features a carbide construction that ensures durability and longevity.

• Material: Carbide for enhanced performance.
• Flute length of two point two eight three five inches for efficient chip removal.
• Overall length of four point seven two four four inches for varied applications.

Product Highlights

This drill bit is ideal for professional applications in metalworking, providing precision and reliability.

Product Information

Standard Information

• Brand: OSG
• MPN: 520045312

Technical Specifications

• Diameter: 0.4531 inches (29/64)
• Shank Diameter: 0.5000 inches (1/2)
• Flute Length: 2.2835 inches (58 mm)
• Overall Length: 4.7244 inches (120 mm)
• Number of Flutes: 2
• Cutting Depth: 3XD
• Point Angle: 140 degrees
• Applicable Materials: Low Carbon Steel, High Carbon Steel, Stainless Steel, Cast Iron, Titanium, Alloy Steel, Cast Aluminum
