OSG 520042212 OSG 27/64EXOCARB ADO-SUS-3D High Performance Stub Length Drill Bit

Product Description

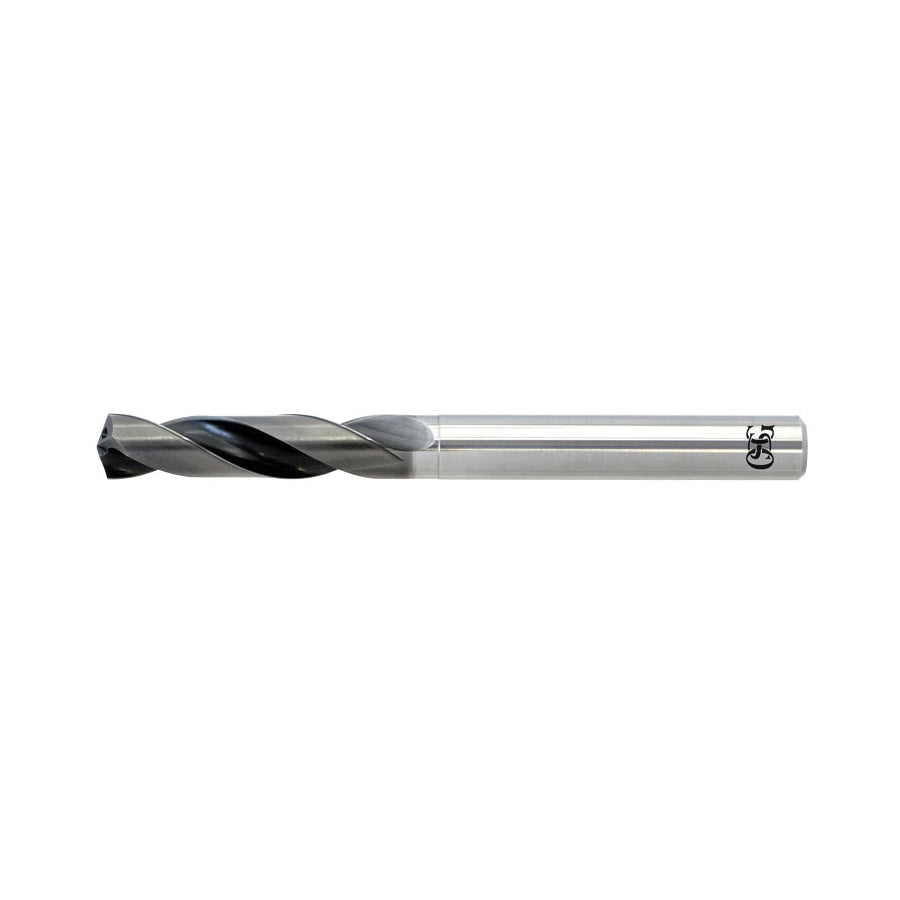

The OSG 27/64EXOCARB ADO-SUS-3D is a high-performance stub length drill bit made from carbide. This drill bit has a diameter of 0.4219 inches, a shank diameter of 0.4375 inches, and features a flute length of 2.1260 inches. The overall length is 4.4488 inches, making it ideal for various drill applications.

• Material: Carbide
• Two-flute spiral design
• Right hand cutting

Product Highlights

This drill bit is suitable for various materials including stainless steel and low carbon steel. It features a WXL coating which enhances its durability and performance.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-520042212

Technical Specifications

• Diameter: 0.4219 inches (27/64)
• Shank Diameter: 0.4375 inches (7/16)
• Flute Length: 2.1260 inches (54.000 mm)
• Overall Length: 4.4488 inches (113.000 mm)
• Number of Flutes: 2
• Cutting Depth: 3XD
• Point Angle: 140 degrees
• Cutting Direction: Right Hand
