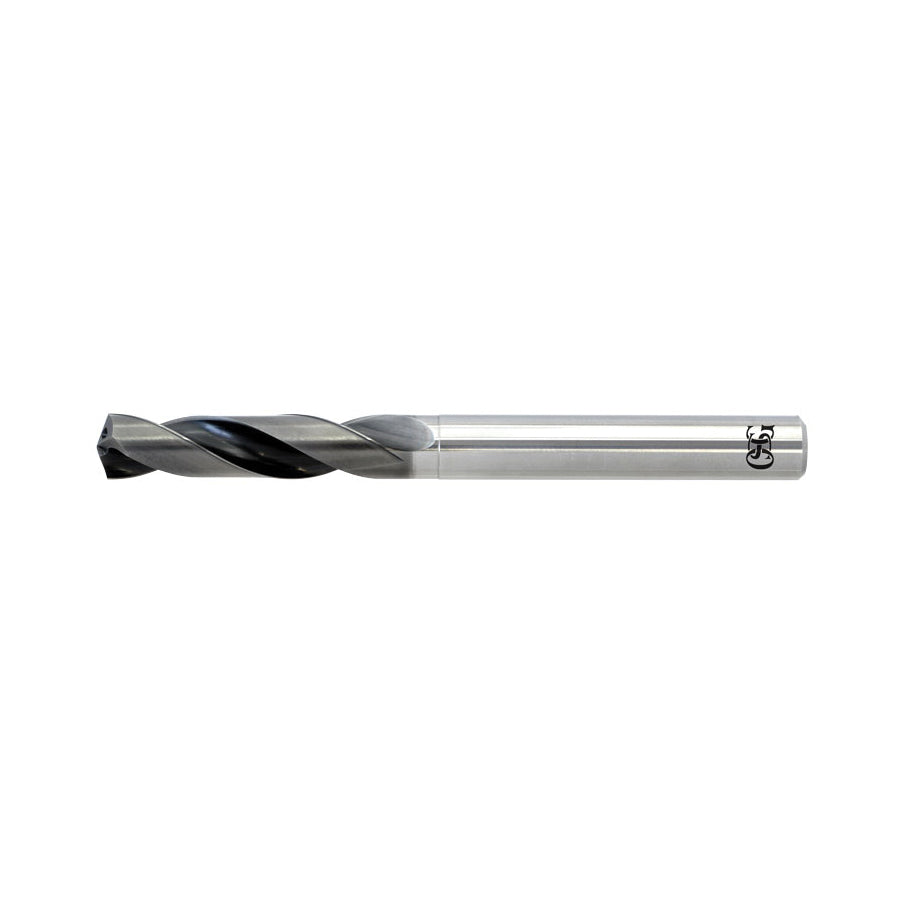

OSG 520040612 ADO-SUS 13/32 in Drill Bit

Product Description

The OSG 13/32 EXOCARB ADO-SUS-3D is a high-performance drill bit designed for efficient drilling in various materials. This drill bit has a diameter of 0.4063 inches and is engineered with a carbide cutting edge. It features a unique WXL coating that enhances wear resistance, making it suitable for rigorous applications.

• Drill size: 13/32 inches (0.4063 inches)
• Overall length: 4.4488 inches
• Flute length: 2.0472 inches

Product Highlights

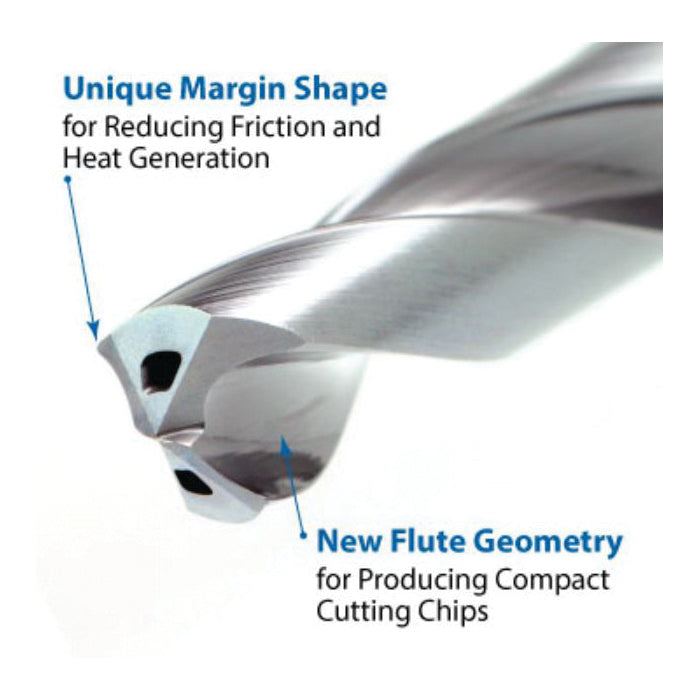

This tool is ideal for drilling into materials like low carbon steel and stainless steel. Its specialized design reduces friction and enhances chip removal, improving overall efficiency during use.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.4063 inches (10.320 mm)
• Shank Diameter: 0.4375 inches (11.113 mm)
• Flute Length: 2.0472 inches (52.000 mm)
• Overall Length: 4.4488 inches (113.000 mm)
• Point Angle: 140 degrees
• Number of Flutes: 2
• Cutting Direction: Right Hand
• Applicable Materials: Low and medium carbon steel, stainless steel, cast iron, titanium, and alloy steel
