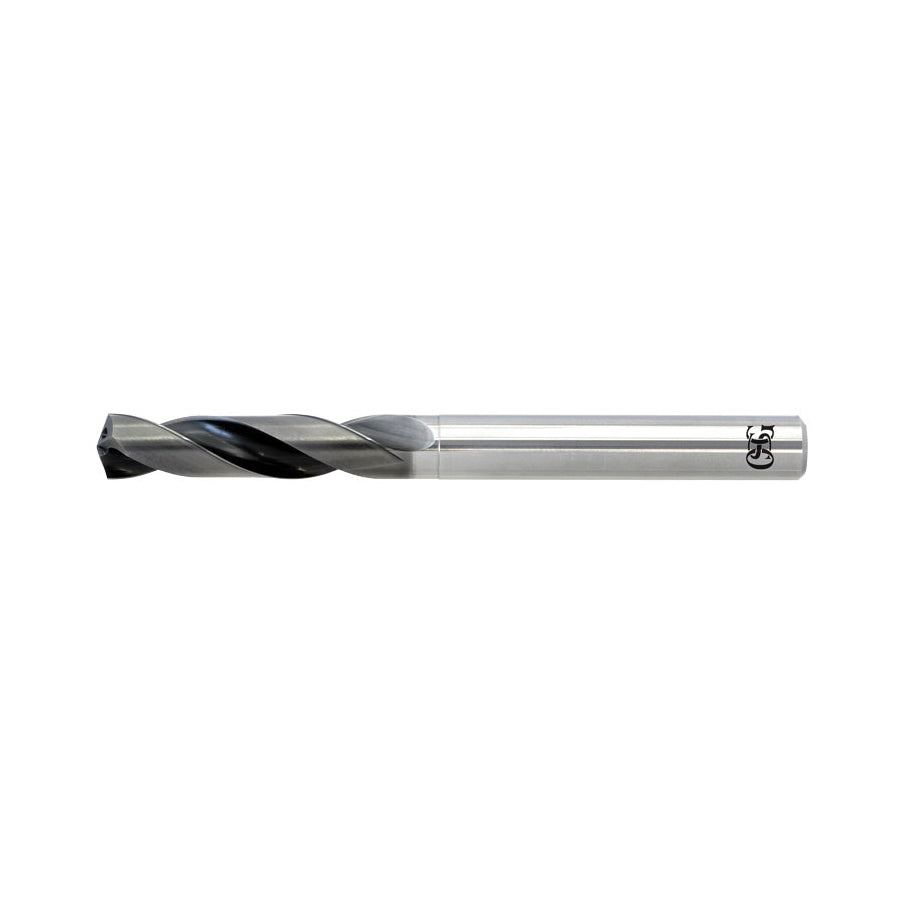

OSG 520035912 ADO-SUS 3D High Performance Stub Length Drill Bit

Product Description

OSG 23/64 EXOCARB ADO-SUS-3D is a high-performance stub length drill bit designed for various applications in metalworking. This drill bit features a diameter of zero point three five nine four inches and is made from carbide material, ensuring durability and efficiency. It has a shank diameter of zero point three seven five inches and an overall length of four point one seven three two inches. This product is ideal for drilling into materials such as stainless steel, low carbon steel, and alloy steel.

• WXL coating for improved wear resistance
• Compatible with various materials including stainless steel and cast iron

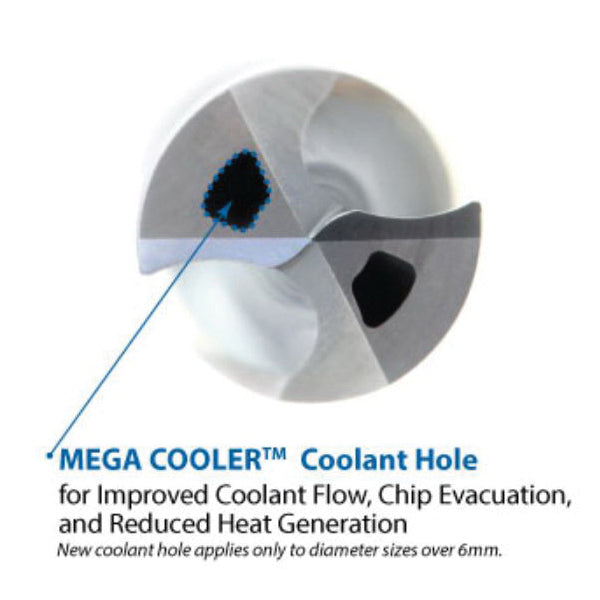

• Internal coolant hole design enhances heat management

Product Highlights

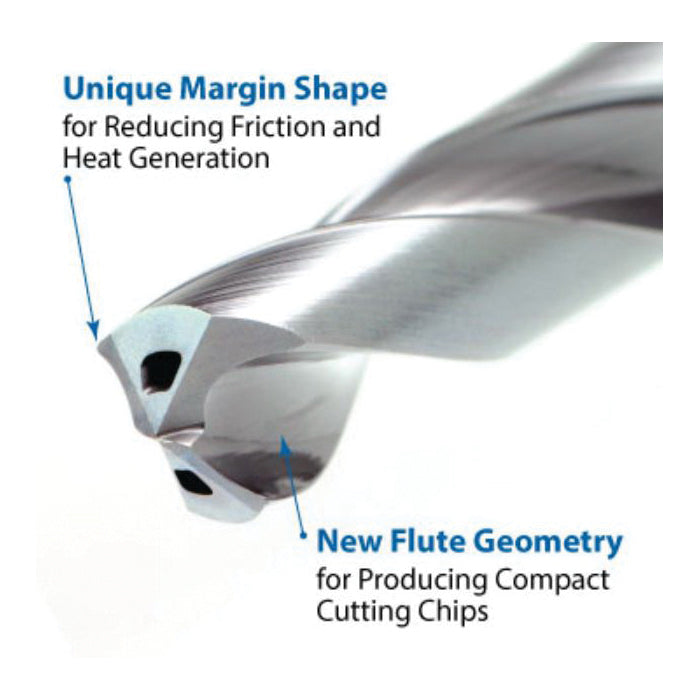

OSG's ADO-SUS drill series is designed for precision and effectiveness in metal drilling tasks. It features improved coolant flow and reduced work hardening, optimizing tool life.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.3594 inches
• Shank Diameter: 0.3750 inches
• Flute Length: 1.8110 inches
• Overall Length: 4.1732 inches
• Number of Flutes: 2
• Cutting Depth: 3XD
• Point Type: R-Thinning
• Point Angle: 140 degrees
