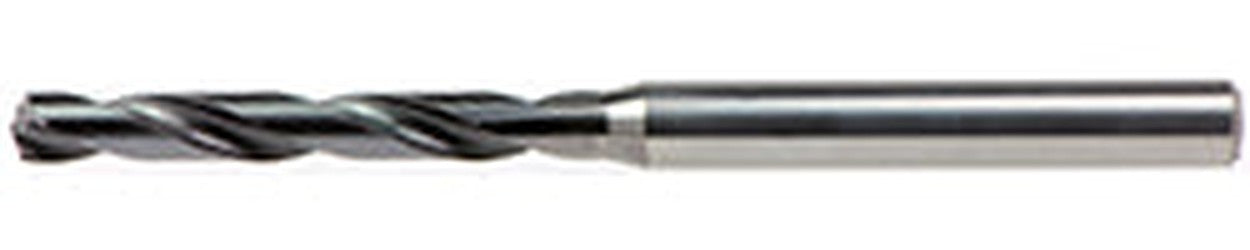

OSG 520032812 ADO-SUS 21/64 EXOCARB High Performance Stub Length Drill Bit

Product Description

The OSG 21/64 EXOCARB ADO-SUS-3D features advanced carbide construction designed for high performance. With a diameter of twenty-one sixty-fourths inches and a shank size of three-eighths inches, this drill bit offers superior precision. The flute length measures one point six five three five inches, while the overall length is three point nine seven six four inches.

• High performance stub length drill for precise drilling.
• Carbide material for durability and cutting efficiency.
• WXL coating enhances wear and increases tool life.

Product Highlights

This drill bit is ideal for use in drilling stainless steel and other tough materials. It is compatible with multiple applications, including tapping and reaming operations. The design minimizes work hardening and improves chip evacuation, which leads to longer life and better performance.

Product Information

Standard Information

• Brand: OSG
• MPN: 520032812

Technical Specifications

• Diameter: 0.3281 (21/64 inches)
• Shank Diameter: 0.3750 (3/8 inches)
• Flute Length: 1.6535 inches (42.000 mm)
• Overall Length: 3.9764 inches (101.000 mm)
• Flute Type: Spiral
• Point Type: R-Thinning
• Cutting Edge Material: Carbide
• Number of Flutes: 2
