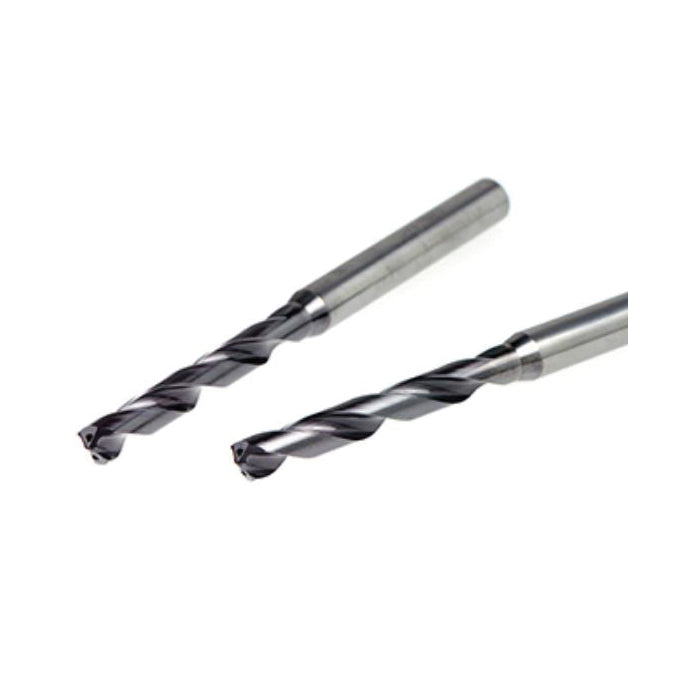

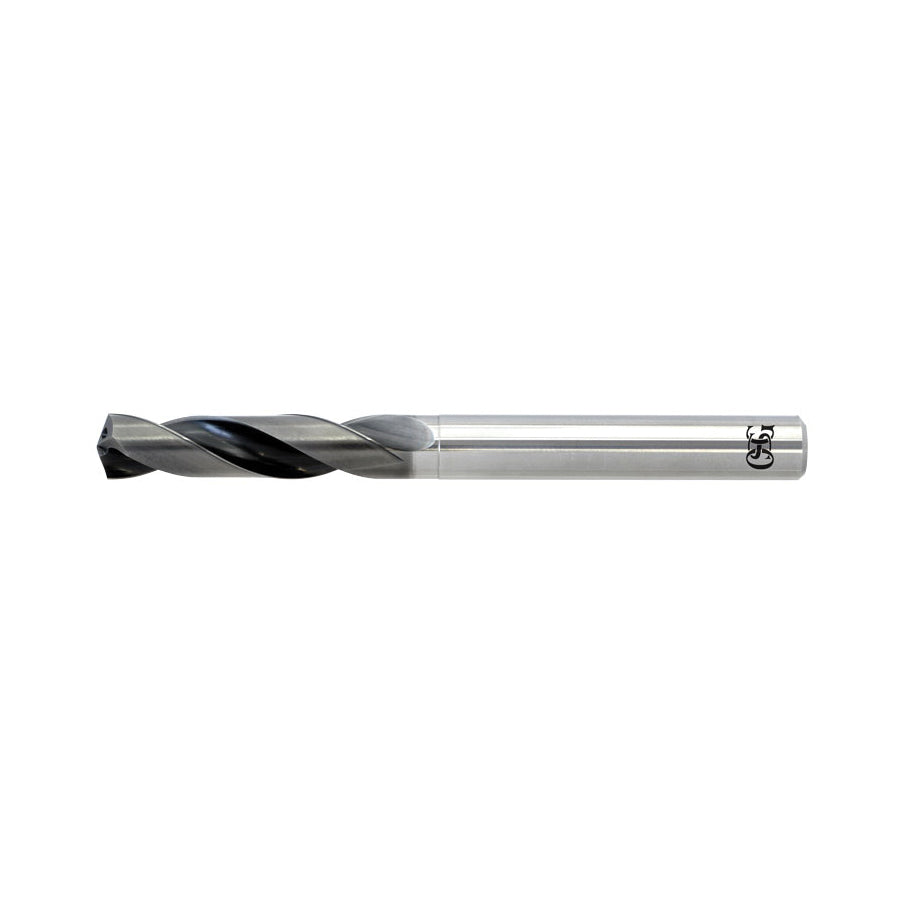

OSG 520026512 ADO-SUS 3D High Performance Stub Length Drill Bit

Product Description

The OSG 17/64 EXOCARB ADO-SUS-3D features a carbide construction and is designed for high-performance drilling in stainless steel. The MPN is 520026512. This drill bit is engineered for precision with a diameter of 0.2656 inches and a shank diameter of 0.3125 inches. It has a flute length of one point three three eight six inches and an overall length of three point four six four six inches.

• Carbide material enhances durability

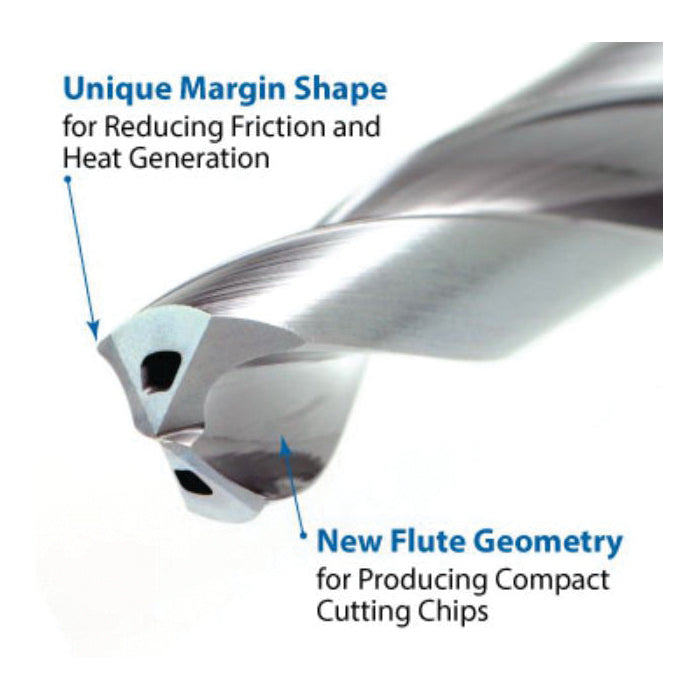

• Special flute design improves chip evacuation
• Compatible with a range of materials including stainless steel

Product Highlights

The OSG ADO-SUS drill series utilizes WXL coating for superior wear resistance. Its specific design allows for faster drilling speeds and more efficient coolant delivery.

Product Information

Standard Information

• Brand: OSG
• Part Number: 520026512

Technical Specifications

• Diameter: 0.2656 inches (17/64 inches)
• Shank Diameter: 0.3125 inches (5/16 inches)
• Flute Length: 1.3386 inches (34.000 mm)
• Overall Length: 3.4646 inches (88.000 mm)
• Number of Flutes: 2
• Point Angle: 140 degrees
• Applicable Materials: Various steel grades, cast iron, titanium, aluminum
• Cutting Edge Material: Carbide
