OSG 520021812 ADO-SUS 3D 7/32 in Drill - Replacement MPN

Product Description

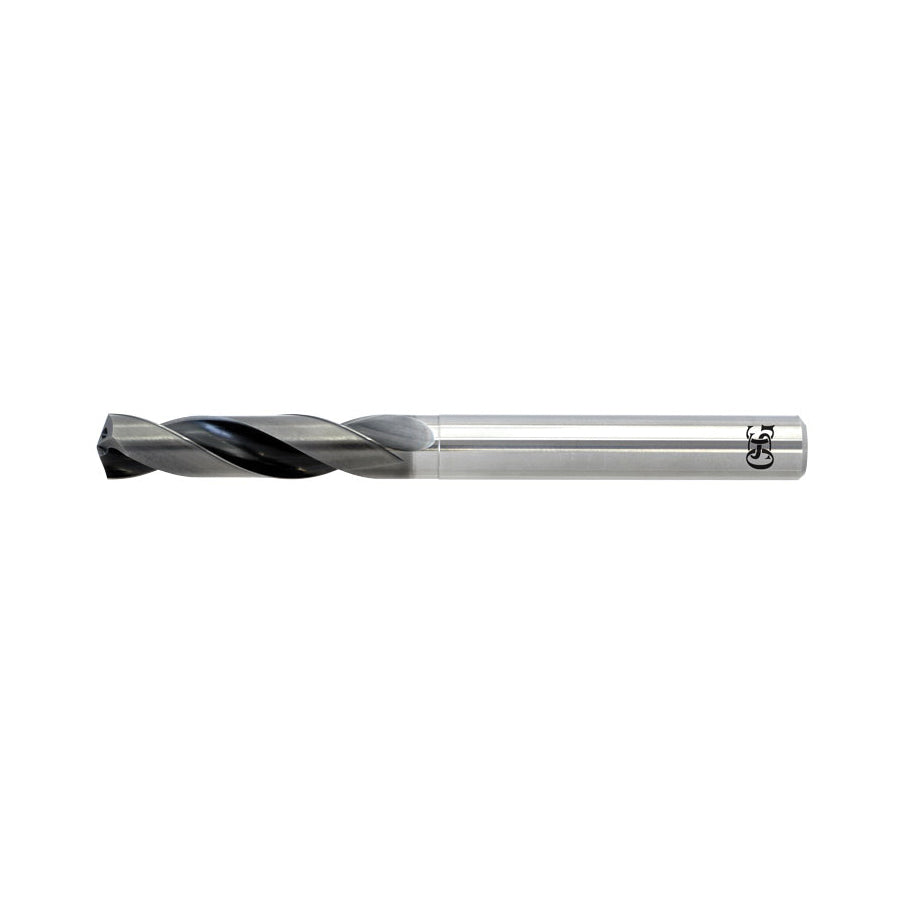

The OSG 7/32 EXOCARB ADO-SUS-3D is a carbide drill bit designed for high performance in various materials. With a diameter of 0.2188 inches and a shank diameter of 0.2500 inches, this drill bit is suitable for tasks that require precision and reliability.

• Manufactured by OSG, a trusted brand in cutting tools
• Flute length of one point one zero two four inches for efficient chip removal
• Overall length of three point two two eight three inches

Product Highlights

This drill bit features OSG's proprietary WXL coating, enhancing durability and performance in tough materials like stainless steel and high carbon steel.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.2188 inches (5.558 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flute Length: 1.1024 inches (28.000 mm)
• Overall Length: 3.2283 inches (82.000 mm)
• Number of Flutes: 2
• Point Angle: 140 degrees
• Cutting Depth: 3XD
• Drill Size - Fraction: 7/32 in
