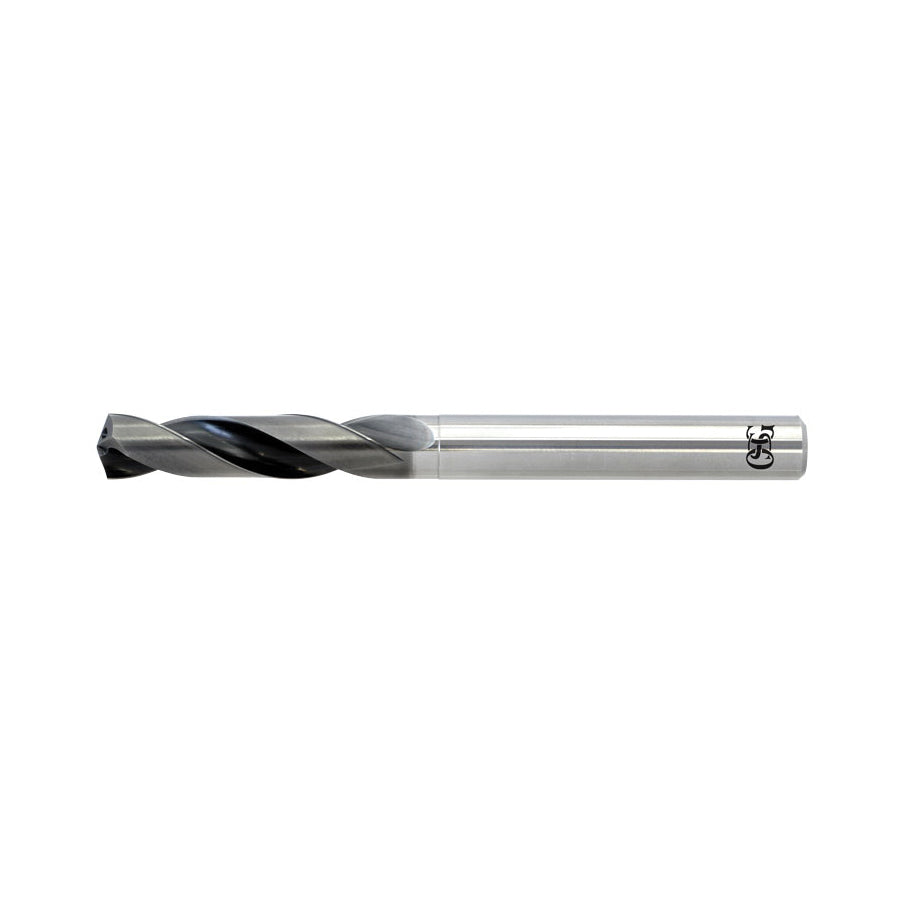

OSG 520018712 ADO-SUS 3/16 EXOCARB Drill Bit

Product Description

The OSG 3/16 EXOCARB ADO-SUS-3D is a drill bit designed for high performance and efficiency. This tool features a diameter of three-sixteenths of an inch, making it ideal for various applications in metalworking. The brand OSG is well-known for producing reliable cutting tools, and this drill bit is no exception.

• Drill size: 3/16 inches (4.76 mm)
• Overall length: three point fifteen inches (80 mm)
• Carbide material for enhanced durability

Product Highlights

This drill bit provides effective drilling in materials such as stainless steel and alloyed steels. Its specialized design increases tool life and maintains performance under tough conditions.

Product Information

Standard Information

• Brand: OSG
• Material: Carbide

Technical Specifications

• Diameter: 0.1875 inches (4.763 mm)
• Shank Diameter: 0.1875 inches (4.763 mm)
• Flute Length: 1.1417 inches (29.000 mm)
• Overall Length: 3.1496 inches (80.000 mm)
• Flute Type: Spiral
• Point Type: R-Thinning
• Point Angle: 140 degrees
• Cutting Depth: 3XD
