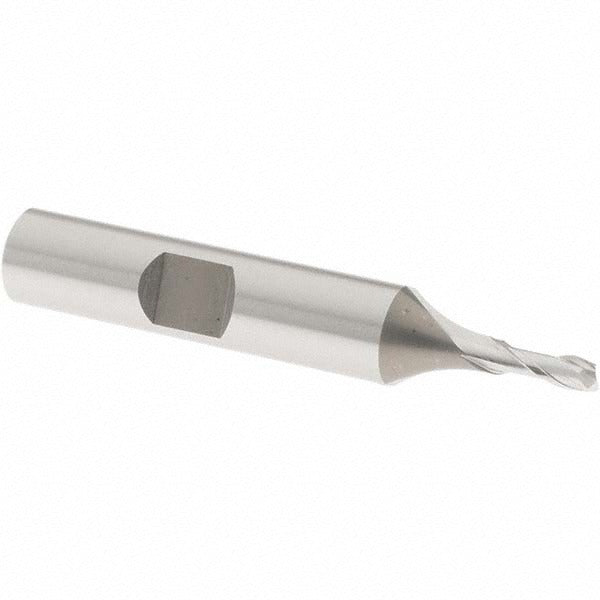

Osg 5200100 Square End Mill 1/8 in 2 Flute Cobalt

Product Description

The OSG 5200100 is a cobalt square end mill designed for precision milling of ferrous and difficult-to-machine materials in production and job-shop environments. Built from M42 cobalt high-speed steel, this tool offers superior heat resistance compared to standard HSS end mills, making it well suited for stainless steel, alloy steels, and work-hardening materials. The 1/8 inch cutting diameter pairs with a 3/8 inch shank for use in standard collet chucks and end mill holders. With a 30-degree helix angle and spiral flute geometry, it produces efficient chip evacuation and smooth cutting action during peripheral and slot milling operations. Installed and operated by machinists and CNC tooling technicians.

This end mill is intended for use in vertical machining centers, knee mills, and manual milling machines where a 3/8 inch tool holder or collet is available. The 2-flute configuration provides chip clearance suitable for slotting and profiling in tougher alloys. The 3/8 inch length of cut supports standard depth-of-cut applications in the 0.300 to 0.500 inch range. The uncoated cobalt construction is appropriate where coatings are unnecessary or where regrinding is anticipated. Series 520 denotes OSG regular-length geometry.

Key Features

• M42 cobalt construction for improved red hardness and wear resistance over standard HSS
• 2-flute design promotes chip clearance in slotting and full-width cuts
• 30-degree helix angle for balanced cutting action and reduced chatter
• Center-cutting geometry allows plunge entry into workpiece material
• Right-hand cut and right-hand flute for use in conventional spindle rotation
• Uncoated finish compatible with standard cutting fluids and coolant systems

Compatibility

Designed as an OEM-style production end mill for use in milling machines and machining centers equipped with a 3/8 inch collet or end mill holder accepting a 3/8 inch shank diameter.

Installation Notes

Installation is performed by a machinist or CNC tooling technician. Secure the shank fully in the collet or end mill holder to the recommended engagement depth before tightening. Verify spindle runout with a dial indicator before beginning cuts, as excessive runout will accelerate tool wear on small-diameter end mills. Inspect the cutting edges for chips or damage before each use and replace the tool when wear is visible.
