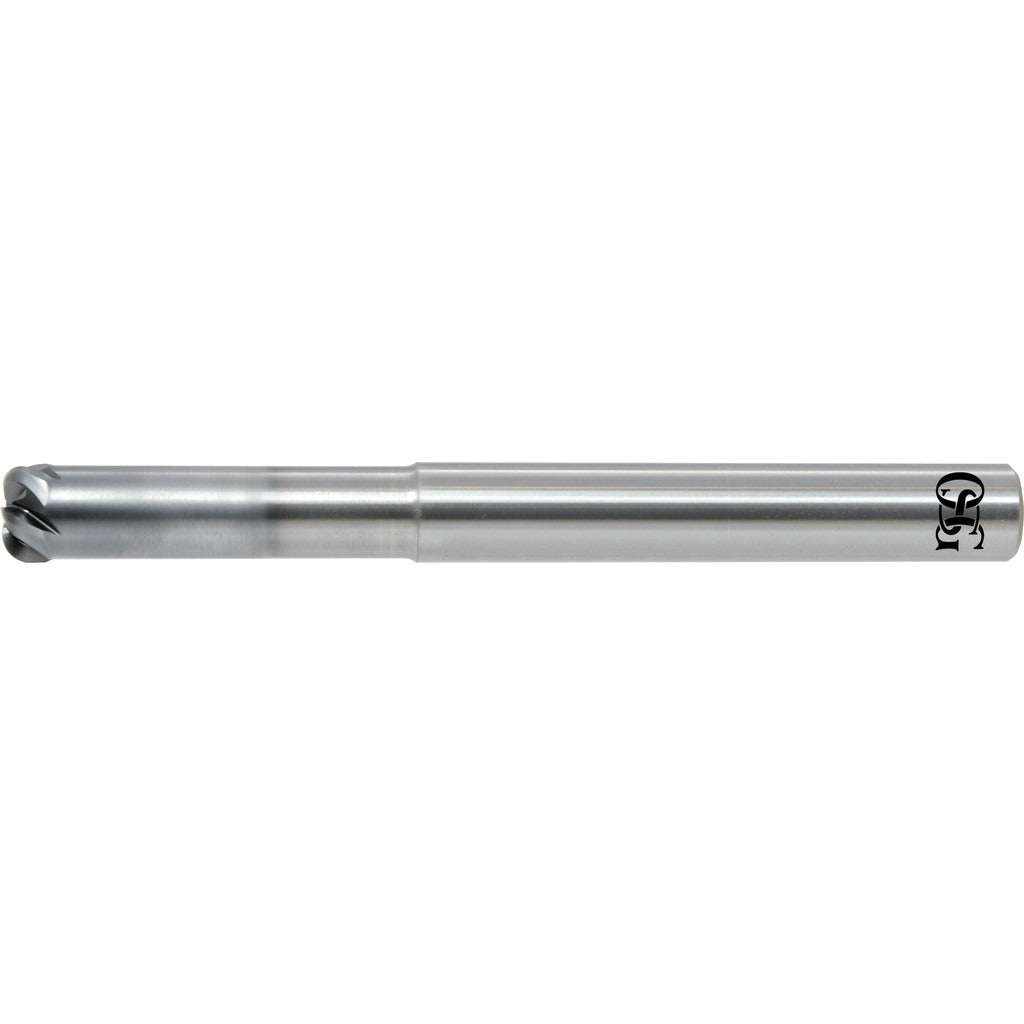

Osg 48106421 Corner Radius End Mill 2 Mm 4 Flute Carbide

Product Description

The OSG 48106421 is a solid carbide corner radius end mill designed for precision milling in demanding metalworking applications. Built to a 2 mm diameter with a 0.5 mm corner radius and 4 right-hand spiral flutes, this tool delivers both roughing and finishing capability in a single end configuration. The extended-reach design features an 8 mm reach length and a 6 mm straight-cylindrical shank, giving machinists clearance in tight pockets and cavities. A WXS PVD coating improves wear resistance and thermal performance when cutting ferrous and high-hardness materials. Licensed machinists and CNC tool-room techs are the primary installers of this tooling.

This end mill is engineered for use in steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its 0.8 mm length of cut, medium helix style, and normal pitch make it well suited for fine detail work and shallow profile passes in close-tolerance machining environments. It mounts in standard toolholders via its 6 mm cylindrical shank and fits machines capable of accepting small-diameter end mills in vertical and horizontal CNC milling setups.

Key Features

• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• WXS PVD coating rated for steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Extended-reach design with 8 mm reach length for access to deep pockets and features
• 0.5 mm corner radius reduces stress concentrations and improves edge durability at corners
• Right-hand cut, right-hand flute direction with 4 spiral flutes for smooth chip evacuation
• Single-end configuration with straight-cylindrical shank compatible with standard toolholders

Compatibility

Designed for use with standard CNC toolholders accepting a 6 mm straight-cylindrical shank. Suitable for milling steel, stainless steel, cast iron, superalloys, titanium, and hard materials under ISO material codes P, M, K, S, and H. Part of OSG Series 4572.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and locked out before mounting or changing tooling. Seat the shank fully into the toolholder and torque the retention mechanism to the toolholder manufacturer specification. Verify runout with a dial indicator before beginning a cut, as runout in small-diameter end mills directly affects surface finish and tool life.
