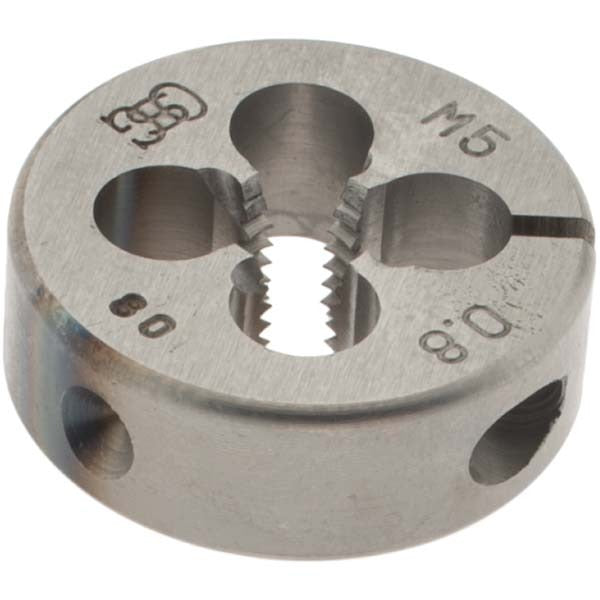

Osg 46034 Round Threading Die M5x0.8 20 Mm Od Hss

Product Description

The OSG 46034 is a round threading die designed to cut external metric threads on iron and steel workpieces. It produces M5x0.8 metric coarse threads and features a 20 mm outside diameter with a thickness of 0.25 inches (1/4 inch). Manufactured from high-speed steel (HSS), the die offers reliable wear resistance for hand and machine tapping operations. The adjustable design allows the operator to fine-tune thread fit and compensate for die wear over time. This is a right-hand thread die suited for production and maintenance threading tasks.

The OSG 46034 is intended for threading M5x0.8 metric coarse fasteners and studs in iron and steel materials. It is commonly used in machine shops, maintenance facilities, and manufacturing environments where metric threading is required. The Series 135 designation places this die within a standard round die family used with matching die stocks. The adjustable split allows thread depth adjustment without additional tooling.

Key Features

• M5x0.8 metric coarse thread profile for standard metric fastener applications
• 20 mm outside diameter fits standard Series 135 die stocks
• High-speed steel construction provides wear resistance on iron and steel
• Adjustable split design allows thread fit fine-tuning
• Right-hand thread cutting direction
• Compact 0.25-inch thickness suitable for confined threading operations

Compatibility

Designed for use on iron and steel. Fits standard Series 135 die stocks accepting a 20 mm outside diameter round die.

Installation Notes

Threading dies are installed and operated by machinists and maintenance technicians. Secure the die in a properly sized die stock before use, and ensure the workpiece is chamfered at the lead end to aid thread starting. Apply an appropriate cutting fluid to the workpiece when threading iron or steel to reduce heat and improve thread quality. Inspect the die for wear or chipping before each use and replace if thread quality degrades.
