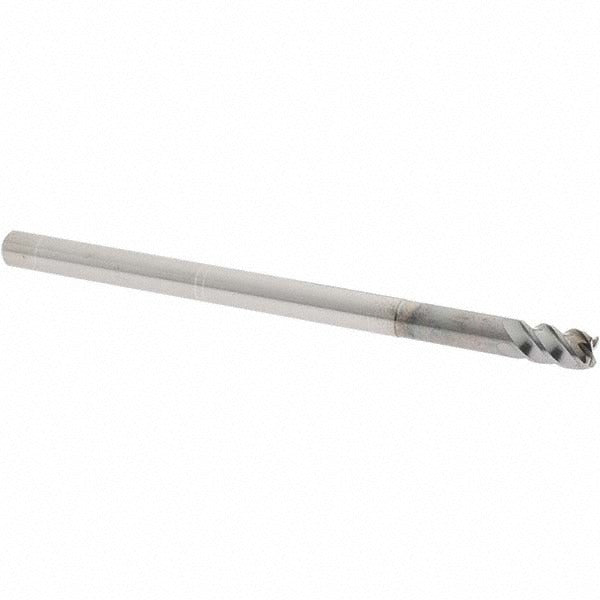

Osg 457106311 Corner Radius End Mill 6mm 4 Flute Carbide

Product Description

The OSG 457106311 is a solid carbide corner radius end mill designed for high-performance milling in demanding material applications. Built around a 6 mm diameter with a 0.5 mm corner radius and four helical flutes, this single-end, center-cutting tool is engineered for both roughing and finishing operations. It carries a WXS PVD coating that extends tool life when working in abrasive and high-hardness workpiece materials. The 45-degree high helix angle promotes efficient chip evacuation and reduces heat buildup during aggressive cuts. Overall length is 100 mm, with a 9 mm length of cut and a 6 mm straight-cylindrical shank. A licensed machinist or CNC operator typically runs this tool.

This end mill is built for machining steel, stainless steel, cast iron, superalloys, titanium, and hard materials. It is well suited to CNC milling centers in job shop, production, and toolroom environments where corner radii are required to reduce stress concentrations or meet part geometry requirements. The extended reach design, with a 30 mm reach length and 5.80 mm neck diameter, allows access to deeper pockets and stepped features without tool holder interference. The normal pitch and right-hand cutting and flute direction make it compatible with standard right-hand toolholder setups.

Key Features

• 6 mm milling diameter with 0.5 mm corner radius for precise radial blending
• Solid carbide construction for rigidity and wear resistance in hard materials
• WXS PVD coating rated for steel, stainless steel, cast iron, superalloys, titanium, and hard material applications
• 45-degree high helix angle with helical flute geometry for efficient chip evacuation
• Center-cutting capability allows direct plunge entry
• Extended reach with 30 mm reach length and 5.80 mm neck diameter for deep pocket access
• Single-end design with straight-cylindrical shank for standard toolholder mounting

Compatibility

Designed for use with standard CNC milling toolholders accepting a 6 mm straight-cylindrical shank. Primary workpiece material codes P, M, K, S, and H cover steel, stainless steel, cast iron, superalloys, titanium, and hard materials per ISO classification. Part of OSG Series 4571.

Installation Notes

Installation and operation should be performed by a qualified machinist or CNC programmer. Confirm toolholder runout and shank clamping torque specifications per the toolholder manufacturer before running. Mill diameter tolerance is 0.00 to -0.02 mm and shank tolerance is h6, so verify fit with your collet or holder bore. Coolant-through is not supported on this tool; apply external coolant or mist as required by the workpiece material and cut parameters.
