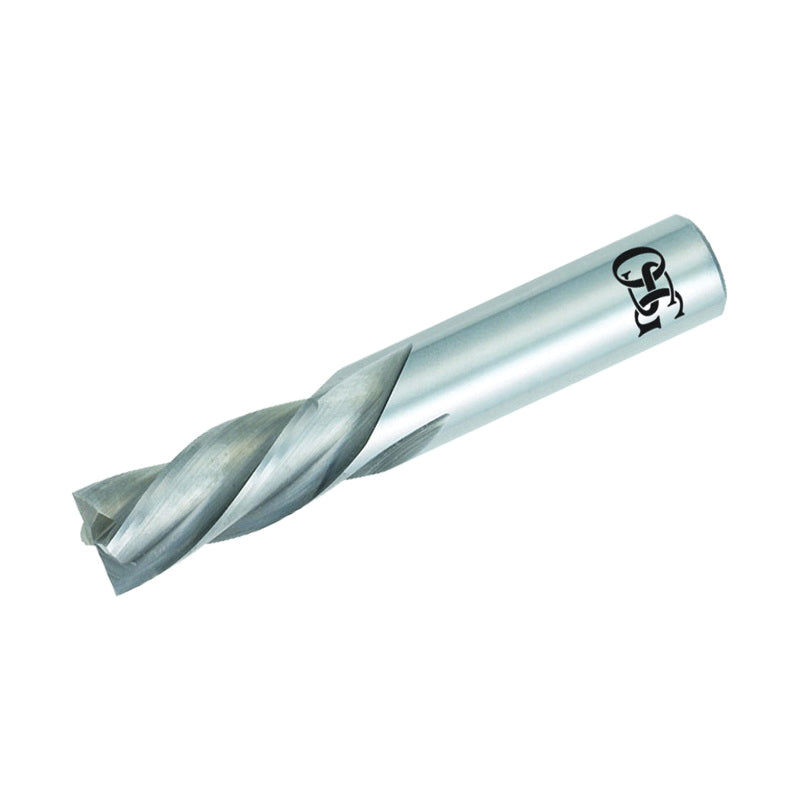

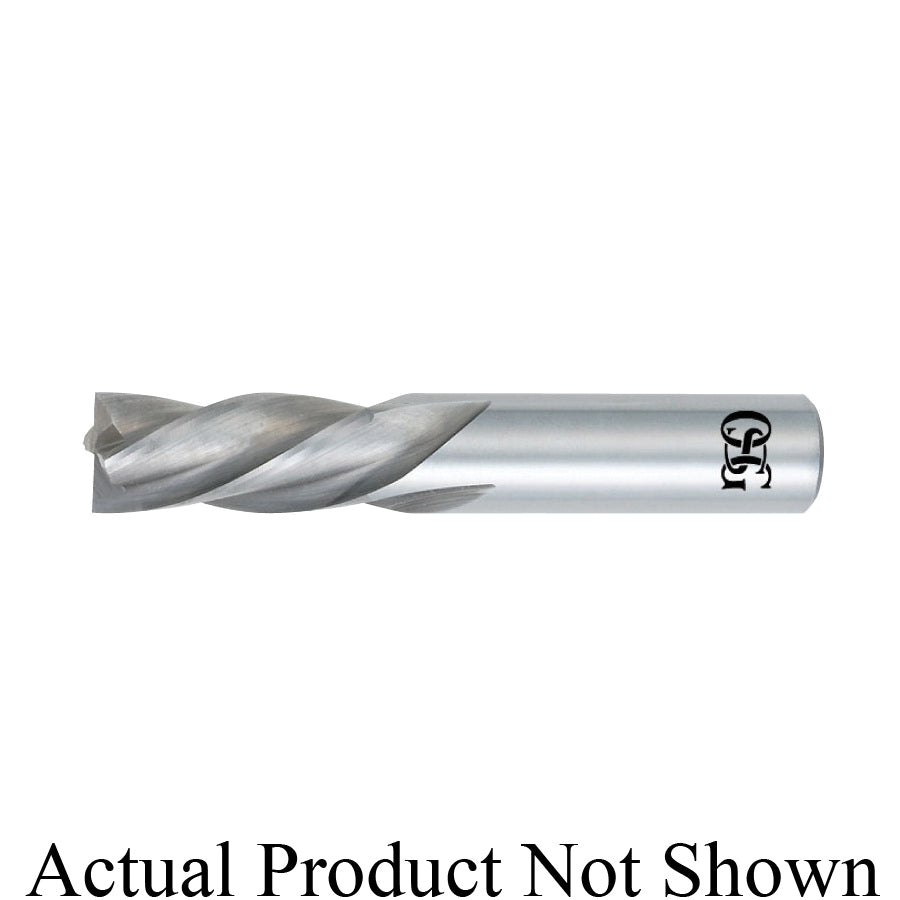

OSG 447-187511 Center Cutting Regular Length Single End Standard Square End Mill 3/16 in Dia Cutter

Product Description

The OSG 447-187511 is a center cutting regular length single end standard square end mill. It features a three-sixteenth inch diameter cutter, with a total length of two inches and a cut length of five-eighths inch. This end mill has four flutes, a right-hand cutting direction, and is made from micrograin carbide, coated with TiAlN for enhanced durability.

• Flute Type: Left Hand Spiral
• Shank Diameter: 3/16 inch
• Helix Angle: 30 degrees

Product Highlights

The OSG square end mill combines value and quality. The design is optimized for precision in milling applications while maintaining a cost-effective profile.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: US

Technical Specifications

• MPN: 447-187511
• Series: 447
• Cutter Diameter: 3/16 inch
• Overall Length: 2 inches
• Length of Cut: 5/8 inch
• Number of Flutes: 4
• Shank Type: Straight
• Cutting Direction: Right Hand
