Osg 4100003811 Thread Mill 7/16-14 Unc 3 Flute Solid Carbide

Product Description

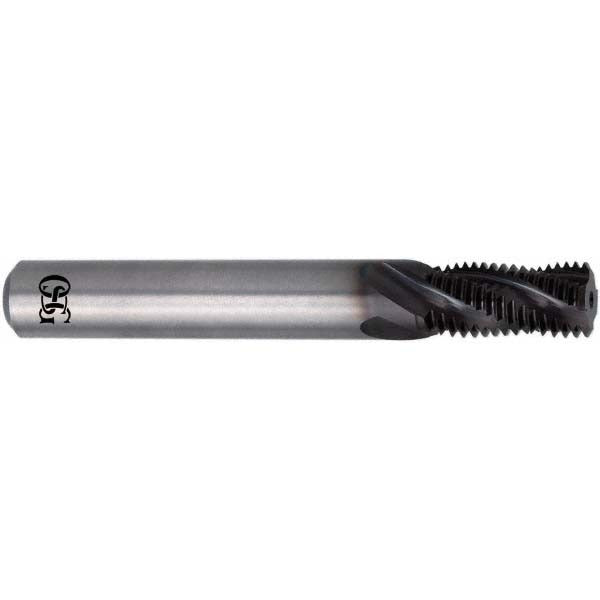

The OSG 4100003811 is a solid carbide helical flute thread mill designed for cutting 7/16-14 UNC internal threads in a single helical interpolation pass. It runs a 0.3500-inch cutting diameter with a 1.0710-inch length of cut, giving machinists sufficient reach for through-holes and blind holes at this thread size. The three right-hand flutes are finished with OSG EXO coating for improved wear resistance and chip evacuation in ferrous and non-ferrous materials. The 3/8-inch straight shank mounts directly in standard ER or end mill holders. This tool is installed by CNC machinists and toolroom professionals working in precision manufacturing, job shop, and production environments.

This thread mill is suited for threading operations on CNC machining centers where a single tool must produce a complete 7/16-14 UNC thread form. Long-reach geometry allows access to deeper hole features without tool-holder interference. The helical flute design promotes smooth cutting action and reduces radial cutting forces compared to solid tap alternatives, making it well-suited for difficult-to-machine alloys, hardened steels, and stainless materials where tap breakage is a concern.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding materials
• EXO coating reduces friction and extends tool life in ferrous and non-ferrous applications
• 0.3500-inch cutting diameter with 1.0710-inch length of cut for adequate thread depth reach
• Three right-hand helical flutes for efficient chip evacuation
• Long-reach thread mill type accommodates deeper hole geometries
• 7/16-14 UNC thread standard — compatible with standard inch-series thread forms

Compatibility

Designed for use in CNC machining centers producing 7/16-14 UNC threaded holes. Fits standard 3/8-inch bore ER collet chucks and end mill holders. Minimum nominal bore diameter for threading is 0.4375 inches.

Installation Notes

Installation and operation should be performed by qualified CNC machinists following the machine tool manufacturer and cutting tool manufacturer guidelines. Secure the 3/8-inch shank in a properly sized, balanced tool holder and verify runout before cutting. Program helical interpolation according to the thread pitch and cutting diameter — consult OSG Series 41000 application data for recommended speeds, feeds, and interpolation parameters. This tool does not support coolant-through delivery; direct external coolant or air blast to the cutting zone as required.
