OSG 404-437511 Center Cutting Regular Length Single End Standard Square End Mill, 7/16 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 7/16 in Dia Shank, 2-3/4 in OAL, TiAlN Coated

Product Description

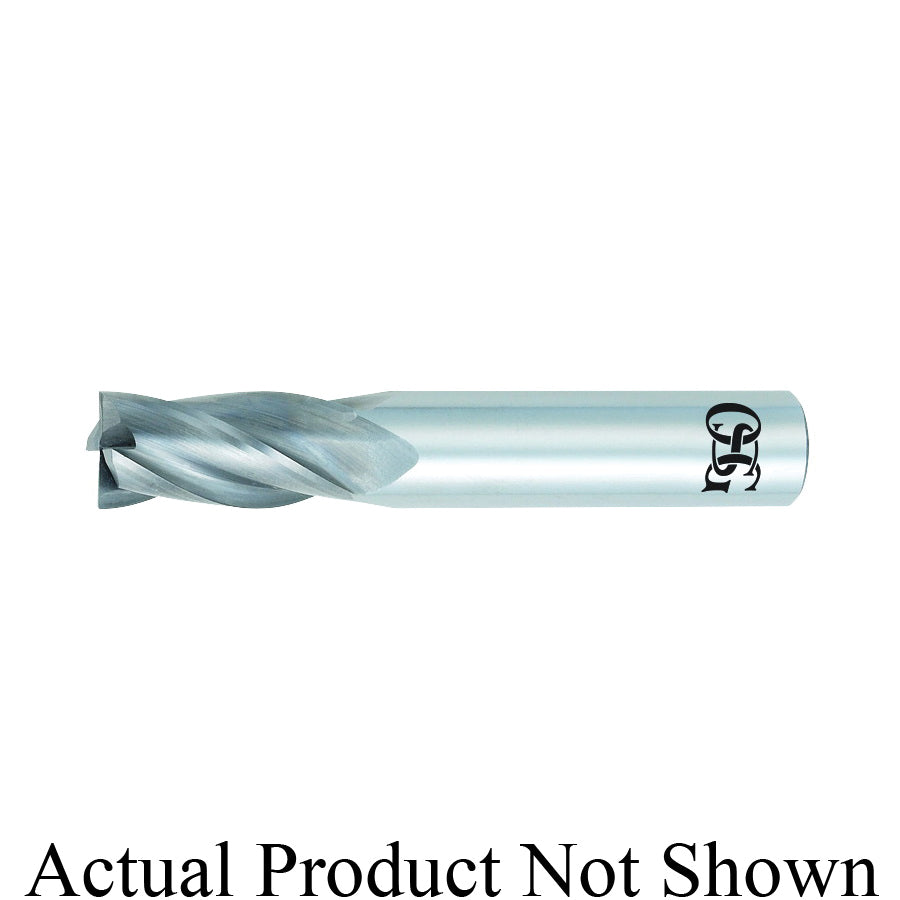

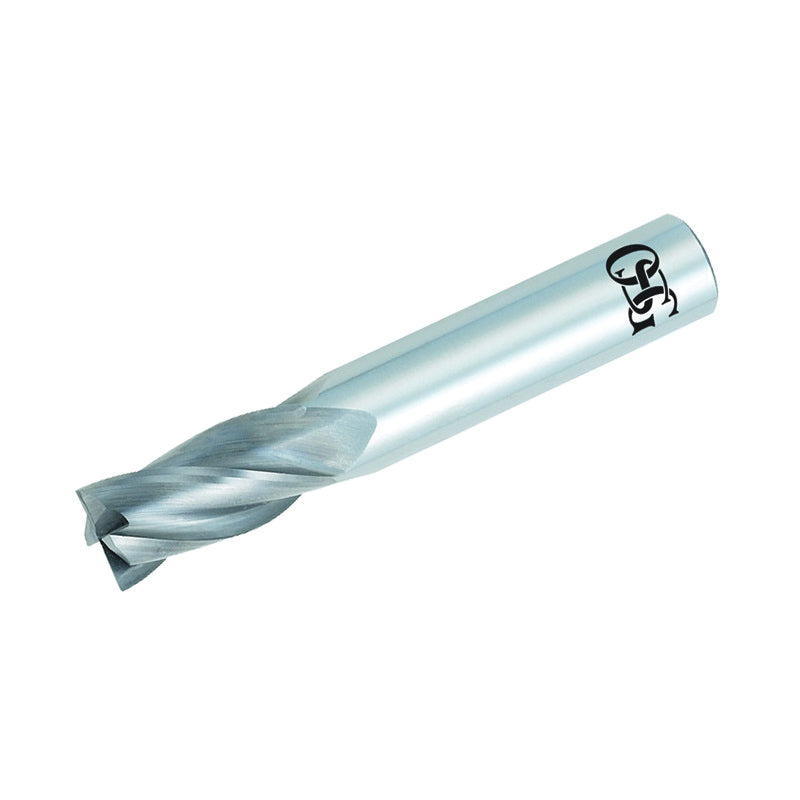

The OSG CARBIDE 404-437511 is an end mill with a diameter of seven-sixteenths of an inch. This tool is designed with four flutes and features a square end for precise cutting. The TiAlN coating enhances performance and durability, making it suitable for various milling applications.

• Diameter: Seven-sixteenths of an inch
• Overall Length: Two and three-fourths inches
• Material: Micrograin carbide

Product Highlights

This end mill is ideal for metalworking and machining tasks. Its center-cutting design allows for plunging as well as side milling.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-404-437511

Technical Specifications

• Material: Micrograin carbide
• Flutes: Four
• Coating/Finish: TiAlN
• Diameter: 0.4375 inches (11.113 mm)
• Shank Diameter: 0.4375 inches (11.113 mm)
• Flute Length: 1.0000 inches (25.400 mm)
• Overall Length: 2.7500 inches (69.850 mm)
• End Shape: Square end
• Cutting Direction: Right hand
• Helix Angle: 30 degrees
