OSG 404-265611 Center Cutting Regular Length Single End Standard Square End Mill, 17/64 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

Product Description

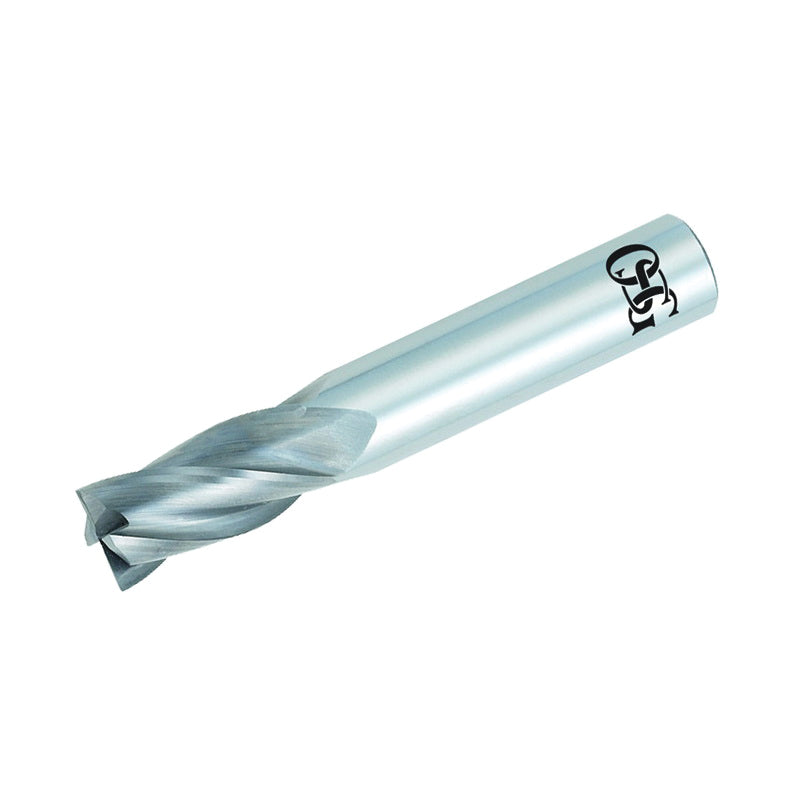

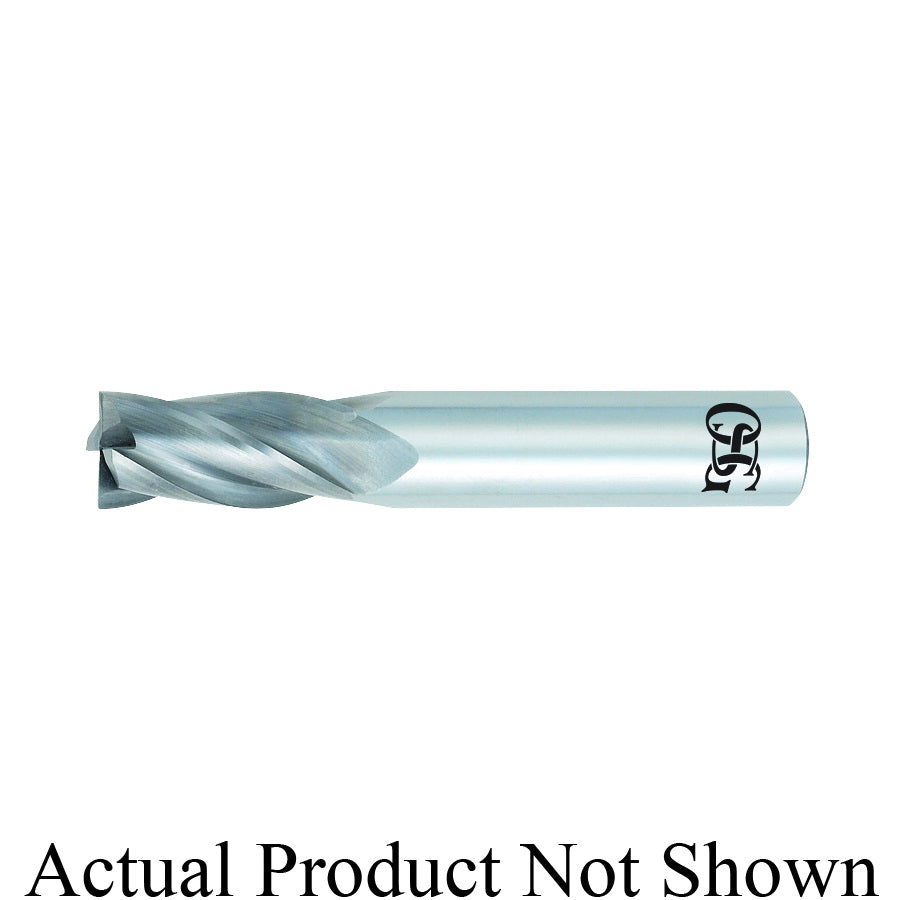

The OSG CARBIDE 404-265611 is a square end mill featuring a diameter of seventeen sixty-fourths of an inch. It has four flutes and a titanium aluminum nitride coating for durability. The overall length measures two and a half inches with a flute length of three-quarters of an inch.

• Material: Carbide
• Coating: TiALN
• Shank diameter: 5/16 inches

Product Highlights

This end mill is designed for efficient milling applications. It maintains precision and performance across various materials. Ideal for trade professionals looking for reliability in milling tools.

Product Information

Standard Information

• Brand: OSG
• Part Number: 404-265611

Technical Specifications

• Type: Center Cutting Regular Length Single End Standard
• Cutter Diameter: 17/64 inches
• Overall Length: 2-1/2 inches
• Length of Cut: 3/4 inches
• Number of Flutes: 4
• Shank Diameter: 5/16 inches
• Cutting Direction: Right Hand
• Helix Angle: 30 degrees
