OSG 404-2188-BN11 7/32 In Ball Nose End Mill 2-1/2 In TiAlN Coated

Product Description

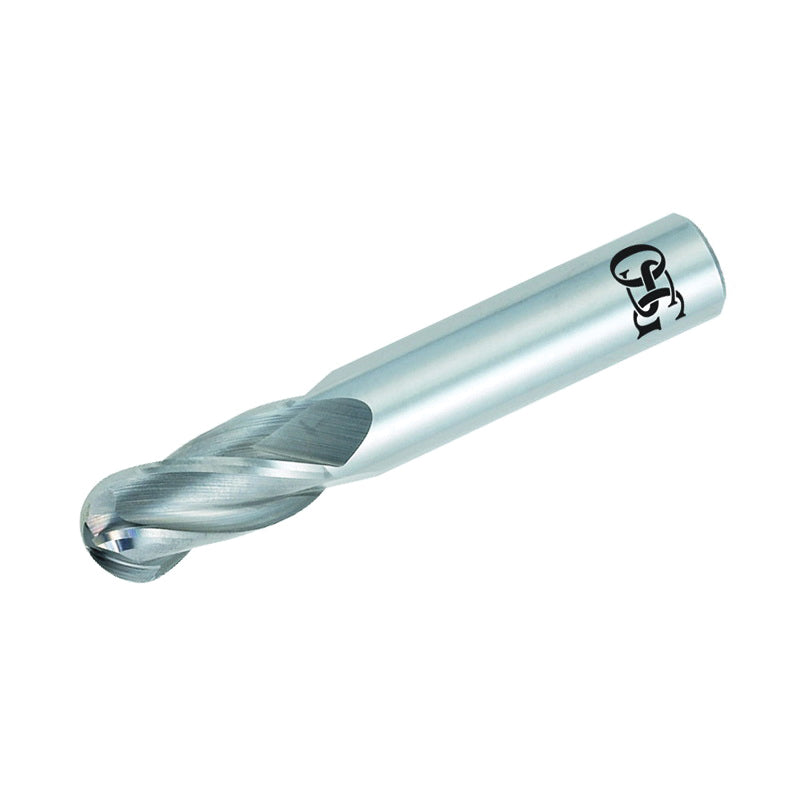

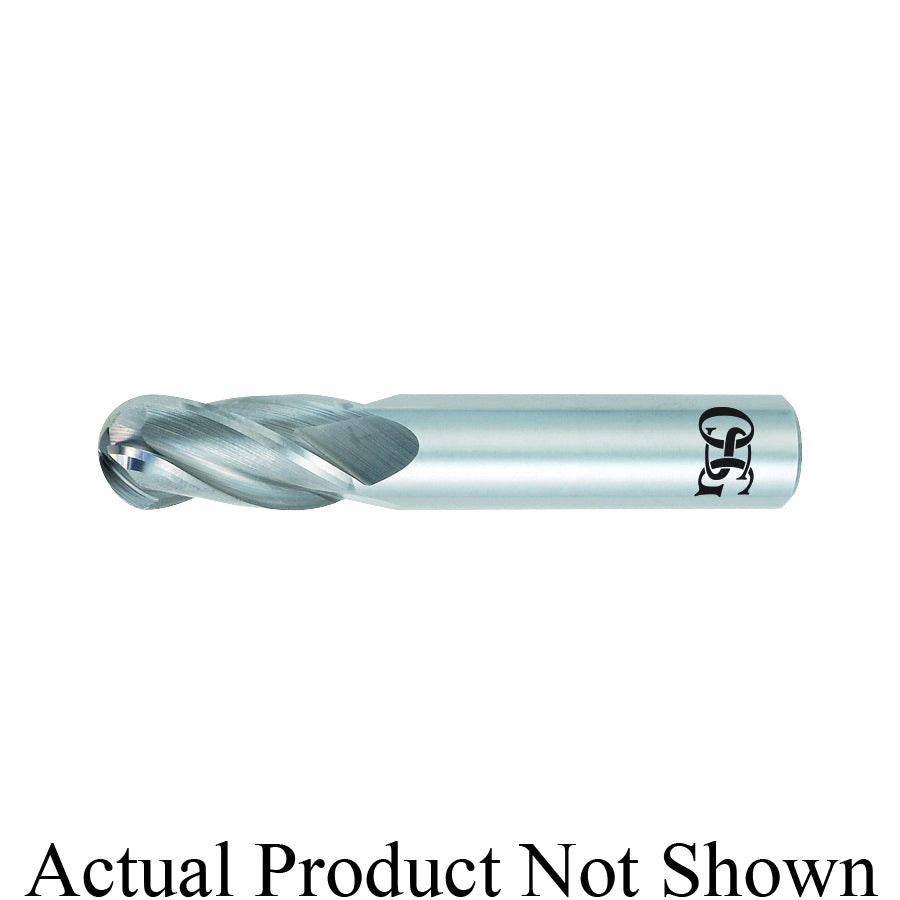

The OSG 404-2188-BN11 is a carbide ball nose end mill designed for precision milling tasks. This tool features a diameter of seven thirty-seconds of an inch and an overall length of two and a half inches. It is a reliable choice for milling applications that require high-quality finishes.

• Material: Carbide
• Flute Count: 4
• Coating: TiAlN

Product Highlights

This ball nose end mill is suitable for various applications including milling, drilling, and contouring. It combines durability with functionality, making it a vital tool for professionals in the metalworking field.

Product Information

Standard Information

• Brand: OSG
• Type: Ball Nose End Mill

Technical Specifications

• Diameter: 0.2188 (5.558 mm) (7/32)
• Shank Diameter: 0.2500 (6.350 mm) (1/4)
• Flute Length: 0.6250 (15.875 mm) (5/8)
• Overall Length: 2.5000 (63.500 mm) (2 1/2)
• Helix Angle: 30 degrees
• Cutting Direction: Right Hand
• Flute Type: Spiral
• Series: 404BN
