OSG 404-140611 Center Cutting Regular Length Single End Standard Square End Mill, 9/64 in Dia Cutter, 1/2 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, TiAlN Coated

Product Description

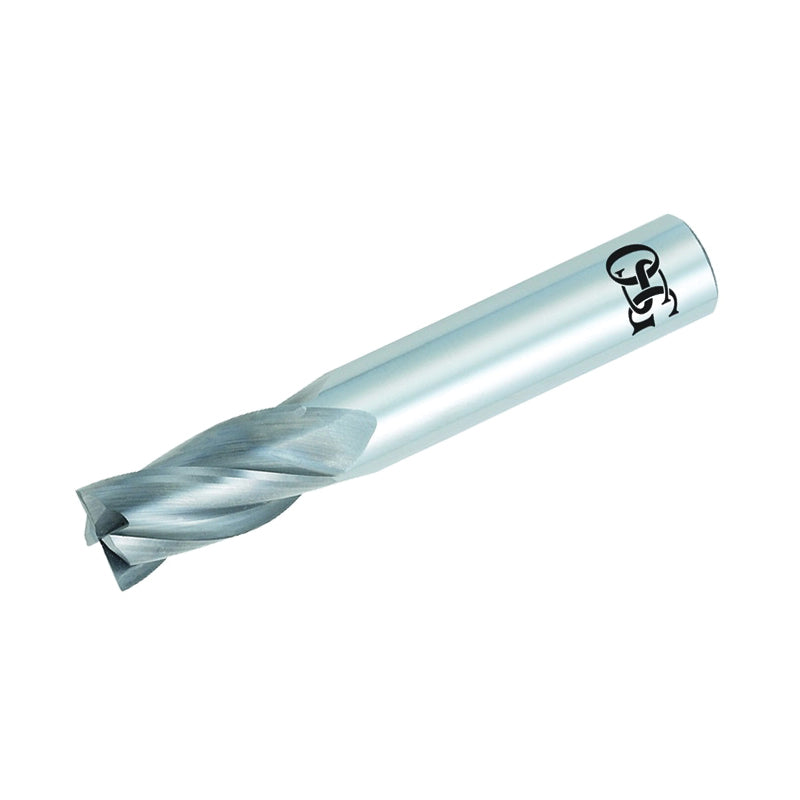

The OSG CARBIDE 404-140611 is a square end mill made from carbide. It measures nine sixty-fourths of an inch in diameter and has a shank diameter of three sixteenths of an inch. This product features four flutes and a flute length of half an inch. The overall length of this end mill is two inches and the tool is coated with TiAlN for enhanced performance.

• Material: Carbide
• Coating: TiALN
• Flute Type: Spiral

Product Highlights

This end mill is designed for cutting and contouring molds in various materials. It is well-suited for plastic parts in appliances and automotive components.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Cutter Diameter: 9/64 in
• Shank Diameter: 3/16 in
• Overall Length: 2 in
• Length of Cut: 1/2 in
• Number of Flutes: 4
• Cutting Direction: Right Hand
• Helix Angle: 30 deg
• Type: Center Cutting Regular Length Single End Standard
