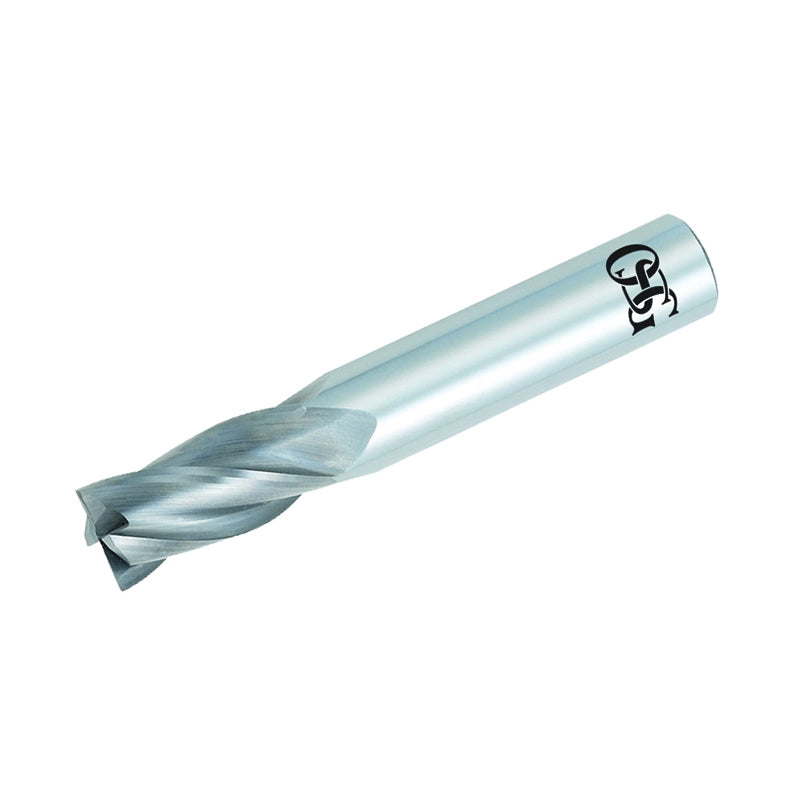

OSG 404-046911 Center Cutting Regular Length Single End Standard Square End Mill, 3/64 in Dia Cutter, 9/64 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiAlN Coated

Product Description

The OSG CARBIDE 3/64 X 1/8 4FL TiAlN is a high-quality end mill designed for precision cutting. This product features a four-flute design that allows for better chip removal and enhanced performance while maintaining rigidity.

• Material: Carbide
• Coating: TiALN for increased durability
• End Shape: Square End for precise corners

Product Highlights

This end mill is effective for cutting molds in various materials, making it ideal for applications in plastic and automotive industries.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-404-046911

Technical Specifications

• Diameter: 0.0469 inches (3/64 inches)
• Shank Diameter: 0.1250 inches (1/8 inches)
• Flute Length: 0.1406 inches (9/64 inches)
• Overall Length: 1.5000 inches (1.5 inches)
• Flute Count: 4
• Coating/Finish: TiALN
• End/Corner Shape: Square End
• Helix Angle: 30 degrees
