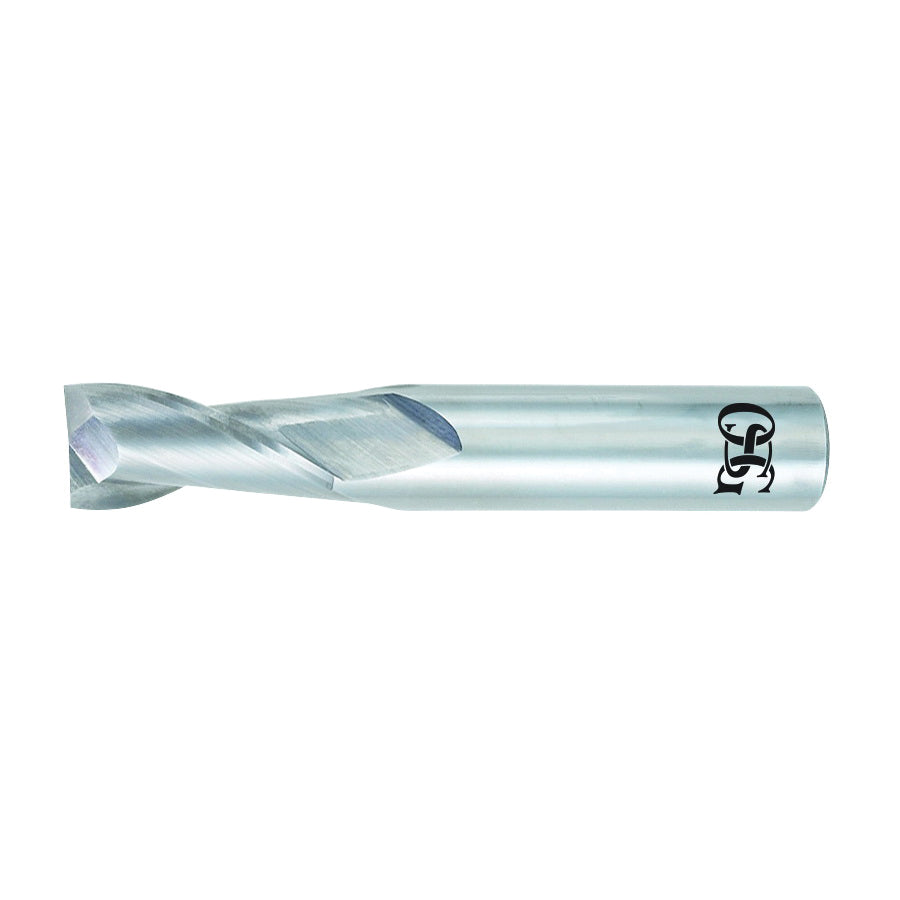

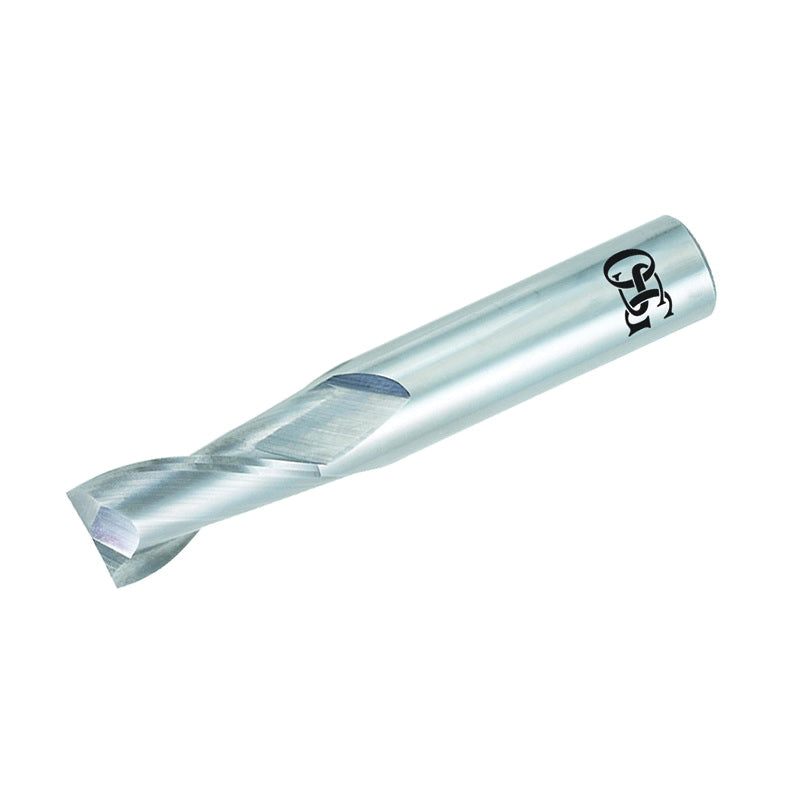

OSG 402-7500 Center Cutting Regular Length Single End Standard Square End Mill 3/4 in Dia Cutter 1-1/2 in Length of Cut

Product Description

The OSG Carbide 3/4 X 3/4 2FL features MPN 402-7500 and is designed for milling applications. This solid end-mill is constructed from high-quality carbide, ensuring durability and precision during use. It has a diameter of three-fourths of an inch and a flute length of one and one-half inches. The overall length is four inches. This product is ideal for machining work where reliable performance is essential.

• Square end design for effective cutting.
• Two flute design for efficient chip removal.
• Uncoated for direct applications.

Product Highlights

This end mill offers a robust solution for various milling needs, leveraging OSG's expertise in cutting tool manufacturing.

Product Information

Standard Information

• Brand: OSG
• MPN: 402-7500

Technical Specifications

• Material: Carbide
• Coating/Finish: Uncoated
• # of flutes: 2
• End/Corner Shape: Square End
• Diameter: 0.7500 inches (19.050 mm)
• Shank Dia.: 0.7500 inches (19.050 mm)
• Flute Length: 1.5000 inches (38.100 mm)
• Overall Length: 4.0000 inches (101.600 mm)
