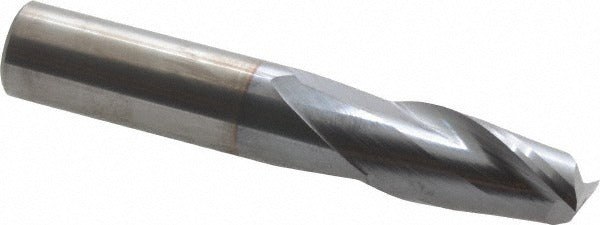

Osg 402-500008 Square End Mill 1/2 in 2 Flute Solid Carbide

Product Description

The OSG 402-500008 is a solid carbide square end mill designed for precision milling operations in metalworking and machining applications. It features a 0.5 inch cutting diameter, a 1 inch length of cut, and a 3 inch overall length with a 0.5 inch shank diameter. The tool carries a TiCN (titanium carbonitride) coating applied over a micrograin carbide substrate, which improves surface hardness and wear resistance at the cutting edge. With 2 flutes and a 30-degree helix angle, it is suited for a range of slot milling, peripheral milling, and profiling operations. Centercutting geometry allows plunge cutting directly into the workpiece. Licensed machinists and CNC operators are the primary installers of this tooling.

This end mill is suited for use in vertical machining centers, CNC milling machines, and manual knee mills where a right-hand cut, right-hand spiral flute tool is required. The regular length profile and 0.5 inch shank make it compatible with standard ER collet chucks, end mill holders, and Weldon-style tool holders used in production and job-shop environments. It performs in ferrous metals, stainless steel, cast iron, and similar hard materials where TiCN coating provides a performance advantage over uncoated carbide. The Series 402 designation identifies it within OSG's standard square end mill line.

Key Features

• Solid micrograin carbide construction for rigidity and edge retention in hard materials
• TiCN coating increases surface hardness and reduces built-up edge
• 30-degree spiral helix angle promotes chip evacuation and smooth cutting action
• Centercutting design allows direct plunge entry without a pre-drilled hole
• Right-hand cut and right-hand flute configuration suits standard CNC spindle rotation
• 2-flute geometry provides chip clearance in slotting and pocketing operations

Compatibility

Designed as an OEM-style replacement or direct-use cutting tool compatible with standard 1/2 inch end mill holders, ER collet chucks, and Weldon-style holders used in CNC and manual milling machines.

Installation Notes

Installation is performed by a machinist or CNC setup technician. The machine spindle must be fully stopped and the tool holder must be de-energized before inserting or removing the end mill. Torque the retention screw or collet nut to the tool holder manufacturer specifications. Verify runout with a dial indicator after seating to ensure proper concentricity before cutting.
