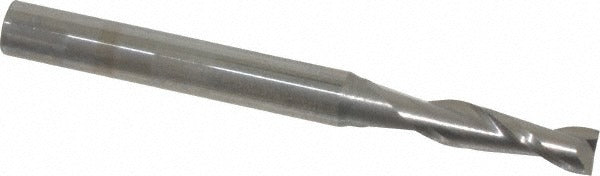

Osg 402-1562 Square End Mill 5/32 in 2 Flute Carbide

Product Description

The OSG 402-1562 is a solid carbide square end mill designed for precise milling operations in ferrous and non-ferrous materials. Built from micrograin carbide, it delivers the rigidity and edge retention required for accurate slot milling, profiling, and plunge cutting. The cutter measures 5/32 inches (0.1563 inches) in diameter with a 9/16-inch length of cut and a 3/16-inch shank diameter. Overall length is 2 inches. The two-flute, spiral geometry with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. This tool is centercutting, allowing direct plunge entry without a pre-drilled hole.

The 402-1562 is suited for general-purpose milling on CNC machining centers, knee mills, and manual machines in job shop, production, and maintenance environments. Its uncoated micrograin carbide construction makes it appropriate for use in aluminum, brass, copper, and mild steels where coating compatibility or regrinding is a consideration. The regular length designation keeps the tool stiff and minimizes deflection during light-to-moderate cuts.

Key Features

• Micrograin solid carbide construction for superior edge retention and wear resistance
• 2-flute spiral design with 30-degree helix angle for effective chip evacuation
• Centercutting capable for direct plunge entry without pilot drilling
• Right-hand cut and right-hand flute orientation for standard spindle use
• Uncoated finish suitable for non-ferrous metals and regrindable applications
• Regular length geometry minimizes deflection in close-tolerance work

Compatibility

Designed as a standard shank square end mill compatible with ER collet chucks, end mill holders, and other toolholding systems accepting a 3/16-inch shank diameter. Part of the OSG Series 402 product line.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Confirm proper shank engagement depth in the toolholder and verify runout with a dial indicator before cutting. Always ensure the machine spindle is fully stopped and locked out before changing tooling. Follow the machine tool manufacturer and OSG cutting data recommendations for feed rate and speed to avoid premature edge wear or tool breakage.
