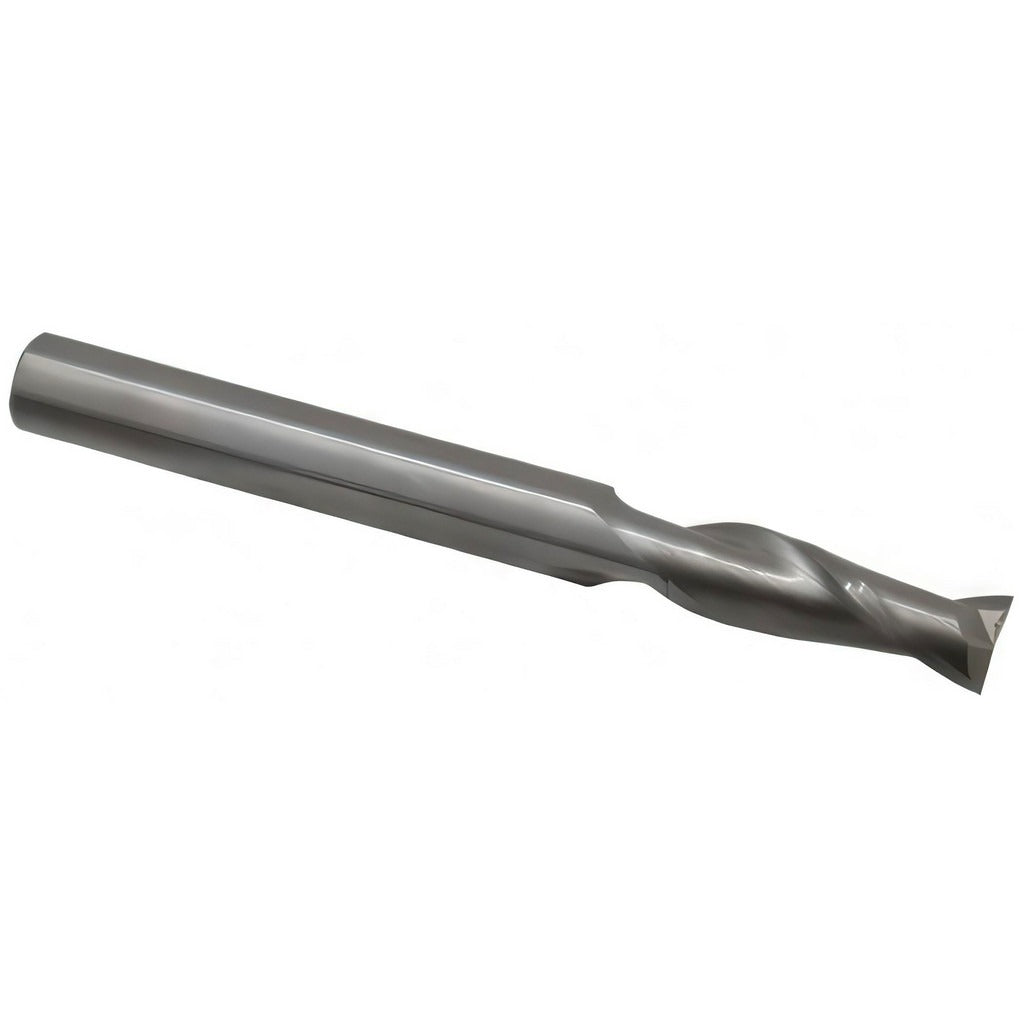

Osg 402-019711 Square End Mill 0.0197in 2 Flute Carbide

Product Description

The OSG 402-019711 is a solid carbide square end mill designed for precision milling in tight-tolerance applications. With a 0.0197-inch (0.5 mm) cutting diameter and a 0.0591-inch (1.5 mm) length of cut, this tool is built for micro-scale machining where dimensional accuracy is critical. The TiAlN coating provides thermal resistance and extended tool life in demanding materials. It features a 30-degree helix angle with a right-hand spiral flute and right-hand cut geometry. Machinists and tool-and-die professionals use this end mill for detail work in ferrous and non-ferrous materials where standard tooling cannot reach the required feature size.

This end mill fits into conventional CNC machining centers and manual mills using a 0.1181-inch (3.00 mm) shank diameter. The Series 402 designation places it within OSG's micrograin carbide line, suited for high-speed finishing and slotting operations in small-feature work. It is a single-end, centercutting tool, meaning it can plunge as well as profile cut. Typical applications include mold cavity detail work, medical component machining, and aerospace part finishing where micro-end mills are the specified tooling class.

Key Features

• 0.0197-inch (0.5 mm) cutting diameter for micro-scale milling operations
• Solid micrograin carbide construction for rigidity and wear resistance
• TiAlN coating for high-temperature performance and extended tool life
• 30-degree helix angle with spiral flute geometry for efficient chip evacuation
• Centercutting design allows both plunge and peripheral cutting
• Right-hand cut and right-hand flute for standard spindle compatibility

Compatibility

Designed as an OEM-style replacement or direct-use micro end mill for CNC machining centers and manual mills accepting a 3.00 mm (0.1181-inch) shank diameter collet or toolholder.

Installation Notes

Installation should be performed by a qualified machinist following standard toolholding procedures. Ensure the spindle is fully stopped and locked before inserting or removing the end mill. Use a precision collet or shrink-fit holder appropriate for the 0.1181-inch shank to minimize runout at this diameter. At micro-diameters, even small amounts of runout significantly reduce tool life and dimensional accuracy, so holder condition and cleanliness are critical before chucking.
