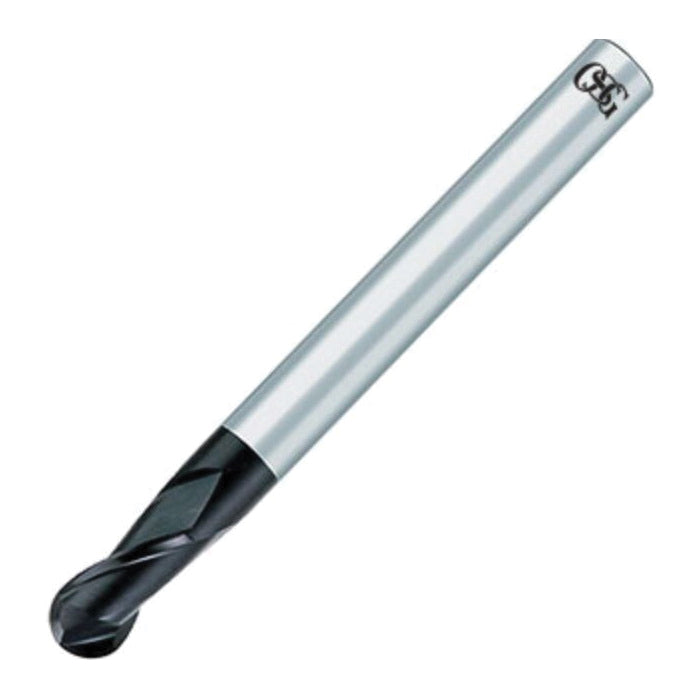

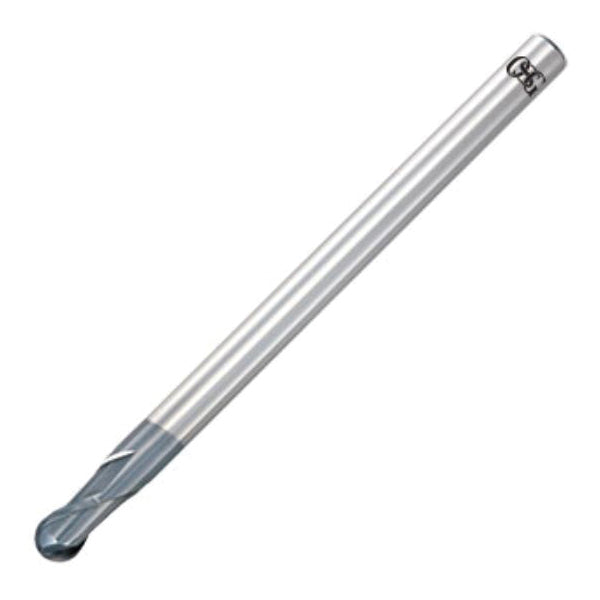

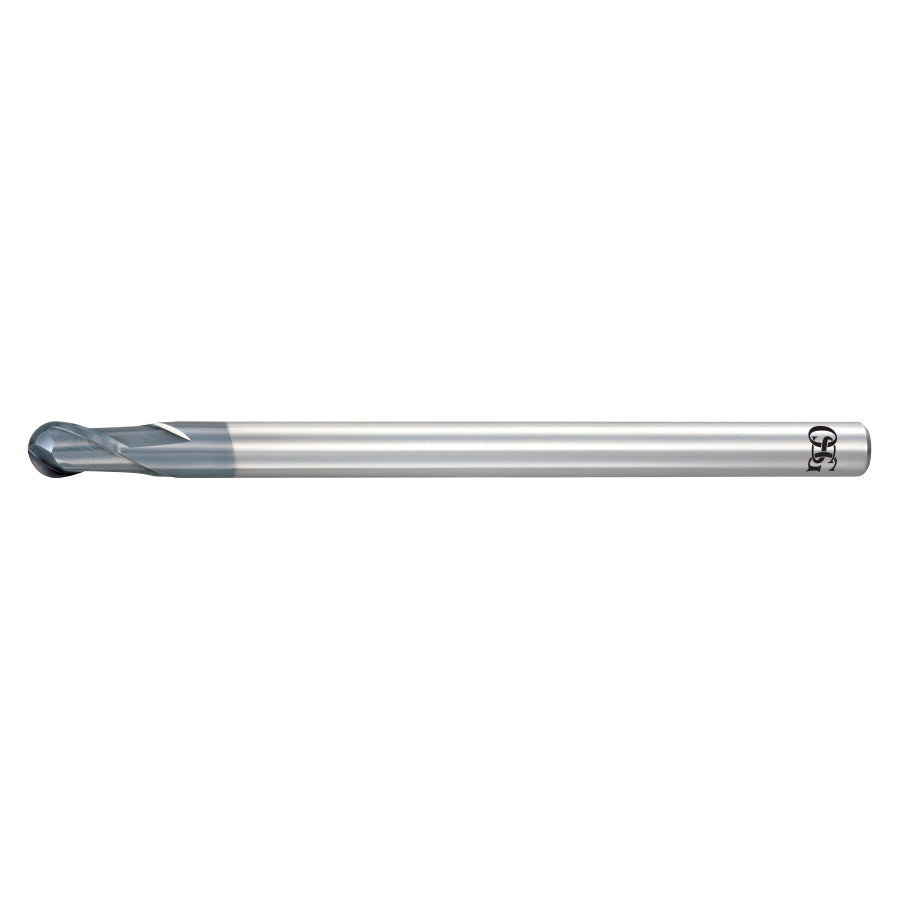

OSG 36100411 1/8x1/4x1/8x3 2F EXOCARB-WXL BALL ENDMILL UP TO 50RC

Product Description

The OSG 36100411 is a high-performance ball endmill designed for precision cutting in hard materials. This endmill features a cutter diameter of one eighth inch and an overall length of three inches. Built from carbide with a WXL coating, it provides enhanced wear resistance, making it suitable for milling tasks up to fifty Rockwell C. The two flutes allow for efficient chip removal.

• Cutter Diameter: 0.125 inches
• Overall Length: 3 inches
• Material: Carbide with WXL Coating

Product Highlights

This endmill is ideal for achieving high precision in milling applications, particularly with non-ferrous materials and mild steels.

Product Information

Standard Information

• Brand: OSG
• Part Number: OSG-36100411

Technical Specifications

• Diameter: 0.1250 inches (3.175 mm)
• Shank Diameter: 0.2500 inches (6.350 mm)
• Flute Length: 0.1250 inches (3.175 mm)
• Overall Length: 3.0000 inches (76.200 mm)
• # of Flutes: 2
• End Shape: Ball End
• Coating/Finish: TiAlN
