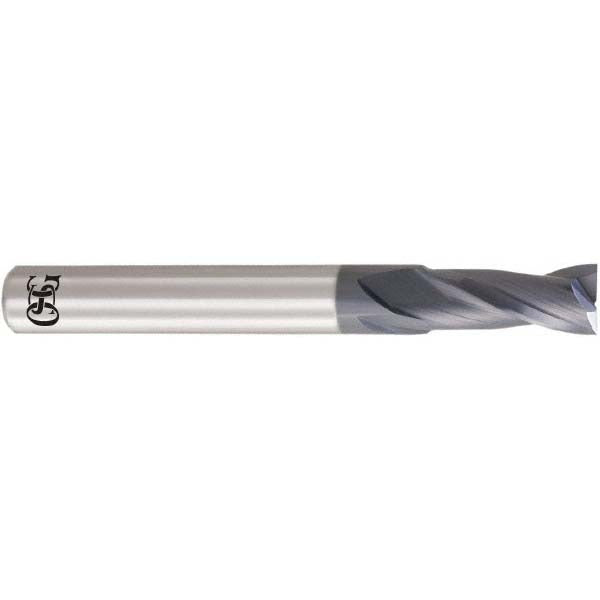

Osg 3182060 Square End Mill 0.2362 in 2 Flute Carbide

Product Description

The OSG 3182060 is a solid carbide square end mill designed for precision milling in metalworking and machining applications. With a 0.2362 inch cutting diameter, a 0.4724 inch length of cut, and a 2-flute configuration, this tool is built for efficient material removal in tight tolerances. The 30-degree helix angle promotes smooth chip evacuation and reduces cutting forces. The WXL coating provides added wear resistance and surface protection during high-performance cutting. This end mill is a single-end, center-cutting tool with right-hand cut and right-hand flute direction, suited for CNC milling operations performed by machinists and tool-and-die professionals.

The OSG 3182060 belongs to the Series 3721 line and is intended for use in standard CNC machining centers and manual milling machines where a 0.2362 inch shank diameter is required. Its micrograin carbide construction makes it well suited for ferrous and non-ferrous materials where dimensional accuracy and tool life are priorities. The 0.4724 inch length of cut falls within the 0.3000 to 0.5000 inch length-of-cut range for this series. This tool is appropriate for slotting, profiling, and peripheral milling at the small-diameter end of the spectrum.

Key Features

• Solid micrograin carbide construction for extended tool life and dimensional stability
• WXL coating for enhanced wear resistance in high-performance cutting conditions
• 30-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Center-cutting design allows plunge entry into workpieces
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• 2-flute geometry suits slotting and full-width cuts in tighter spaces

Compatibility

Designed as an OEM-style replacement or direct-use end mill for CNC machining centers and manual mills accepting a 0.2362 inch shank diameter, within the OSG Series 3721 product line.

Installation Notes

Installation should be performed by a qualified machinist following standard tooling procedures. Ensure the spindle is fully stopped and the machine is powered down before installing or removing the end mill. Use an appropriate collet or end mill holder rated for the 0.2362 inch shank diameter and verify runout before beginning a cut. Follow the machine manufacturer and OSG Series 3721 guidelines for speeds, feeds, and depth of cut to avoid tool breakage.
