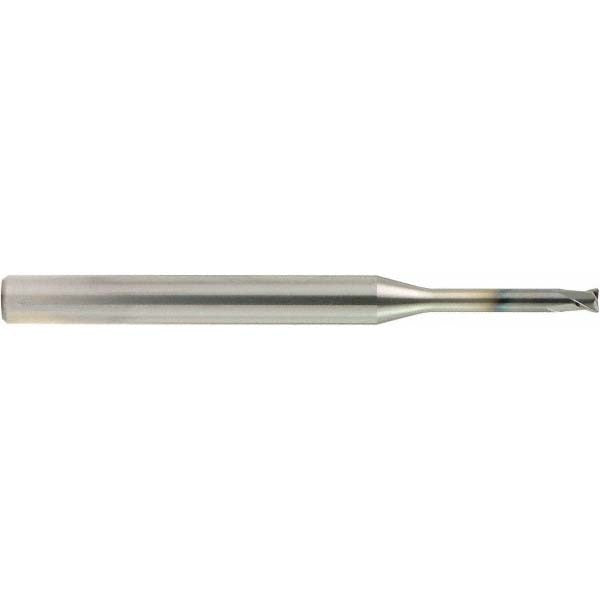

Osg 3103005 Corner Radius End Mill 3mm 2-flute Carbide

Product Description

The OSG 3103005 is a solid carbide corner radius end mill designed for high-performance material removal in steel, stainless steel, and hard materials. It features a 3 mm cutting diameter, a 0.2 mm corner radius, and a 2.5 mm length of cut. The tool carries a WXS PVD coating applied via physical vapor deposition, which improves wear resistance and tool life at elevated cutting temperatures. With a 2-flute, right-hand helical geometry and a coarse pitch designed for roughing, it suits demanding applications where chip evacuation and cutting efficiency are priorities. This end mill is intended for use in CNC machining centers with a compatible toolholder.

The OSG 3103005 is a stub-length, single-end tool with extended reach capability. It is suited for slotting, profiling, and roughing passes in steel and stainless steel workpieces, as well as hard materials. The 6 mm straight cylindrical shank fits standard toolholders, and the 25 mm reach length makes it appropriate for operations requiring access into cavities or stepped features without the flexibility penalty of a longer overall tool. The 70 mm overall length supports rigid setup in vertical and horizontal machining centers.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and hard materials
• WXS PVD coating extends tool life during roughing in steel and stainless steel
• 0.2 mm corner radius reduces stress concentration at the cutting edge and improves corner durability
• 2-flute, right-hand helical geometry with coarse pitch optimized for roughing and chip evacuation
• Extended reach with 25 mm reach length and 2.85 mm neck diameter for cavity access
• Center-cutting capable, allowing plunge entry as well as peripheral cuts

Compatibility

Designed for use with a standard toolholder accepting a 6 mm straight cylindrical shank. Primary workpiece materials are steel, stainless steel, and hard materials. Part of OSG Series 4592.

Installation Notes

Installation is performed by a machinist or CNC setup technician. Secure the 6 mm shank in a compatible toolholder to the appropriate clamping specification for the holder type in use. Ensure the spindle is fully stopped and the machine is in a safe state before tool changes. Do not exceed the rated reach length with unsupported overhang, as this increases deflection risk during roughing passes.
