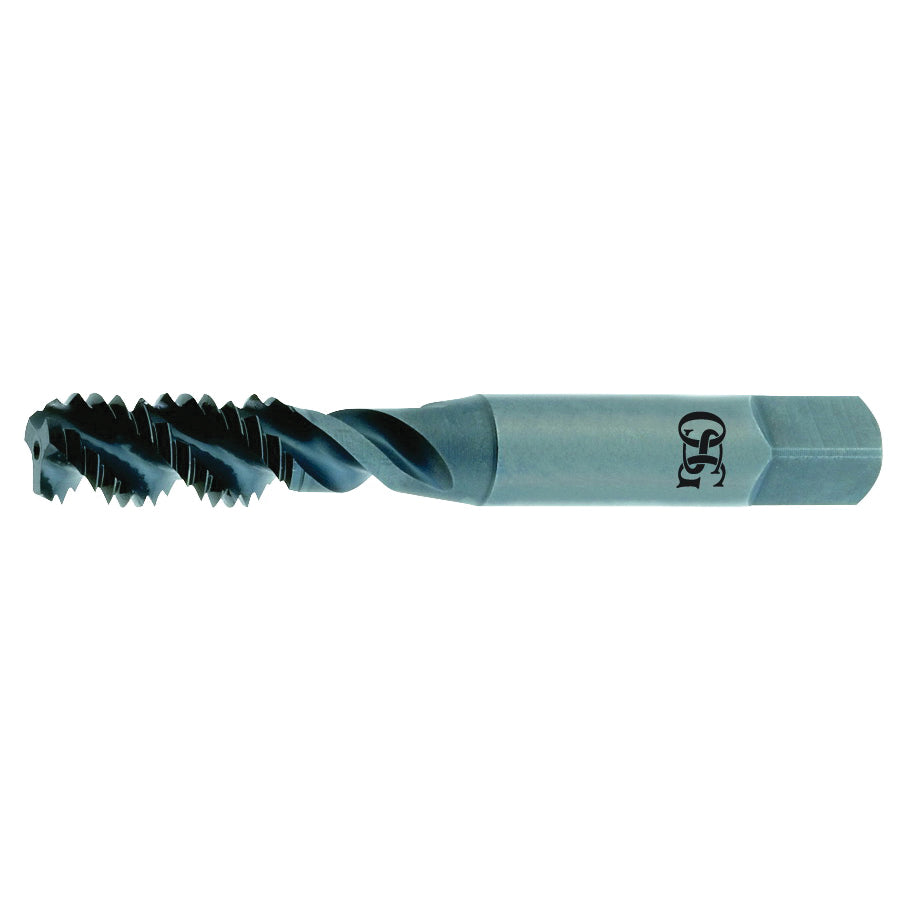

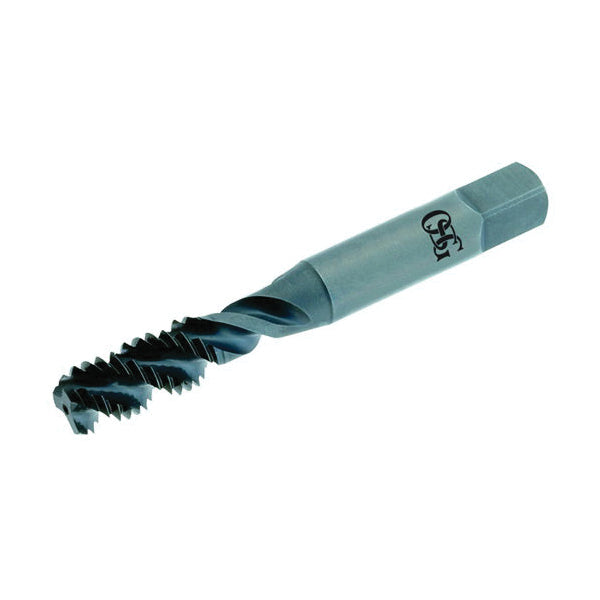

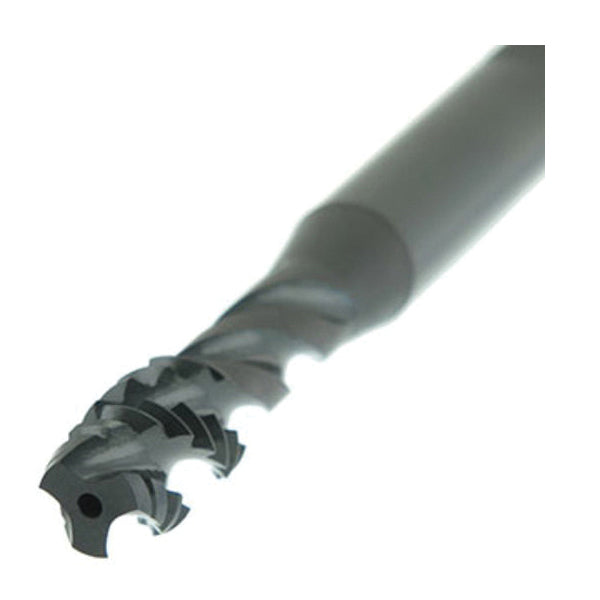

OSG 2986201 HY-PRO 297 Premium Spiral Flute Tap Right Hand Cutting 1/2-13 Thread 1.5P-2P Bottoming Chamfer

Product Description

OSG 2986201 HY-PRO 297 Premium Spiral Flute Tap is designed for various cutting applications. This right-hand cutting tap features a 1/2-13 thread size. It includes a 1.5P-2P bottoming chamfer and three flutes for efficient performance. The steam oxide finish enhances durability.

• Material: High-speed steel (HSS)
• Thread length: 1-21/32 inches
• Overall length: 3-3/8 inches

Product Highlights

Ideal for use with aluminum alloy, cast aluminum, and low/medium carbon steel materials. The design incorporates slow spiral for effective chip removal.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Size: 1/2 inches
• Type: Premium
• Series: 297
• Material: HSS
• Thread Size: 1/2-13
• Chamfer Type: 1.5P-2P Bottoming
• Class of Fit: 2B
• Shank Length: 1-23/32 inches
• Thread Length: 1-21/32 inches
• Finish/Coating: Steam Oxide
• Overall Length: 3-3/8 inches
• Shank Diameter: 0.367 inches
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Aluminum Alloy, Cast Aluminum, Low/Medium Carbon Steel
• Through Coolant: No
