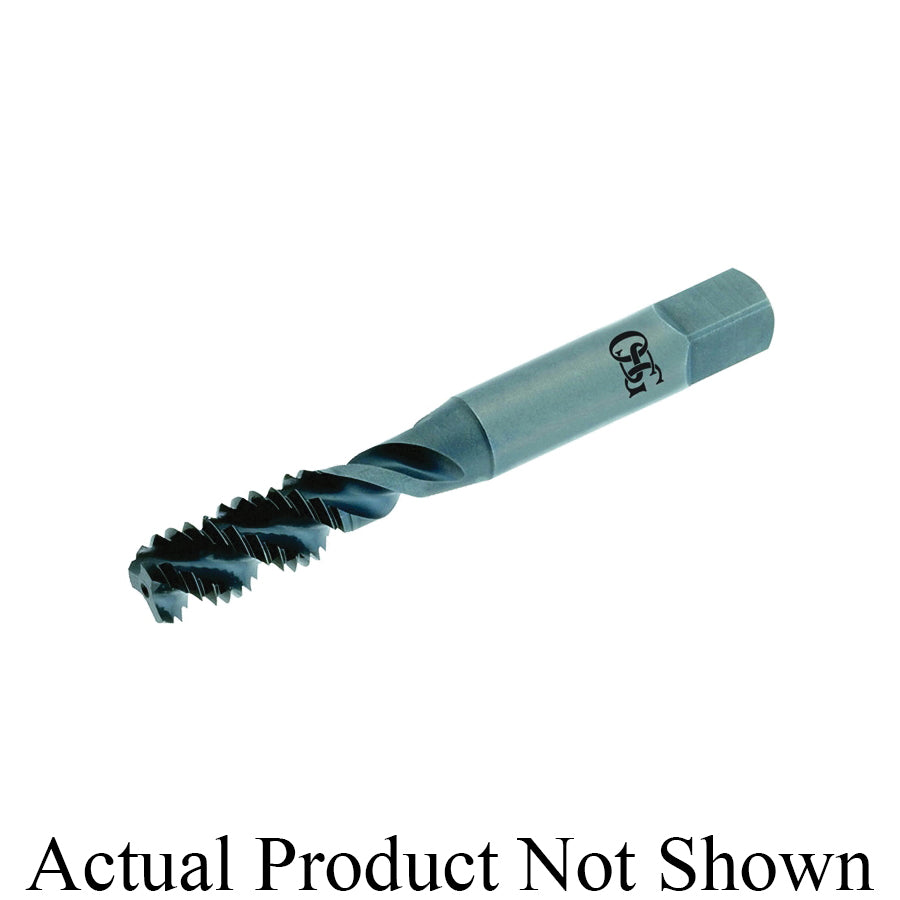

OSG 2985601 HY-PRO® SEVEN 298I Spiral Flute Tap Right Hand Cutting 1/4-20 Thread 1.5P-2P Bottoming

Product Description

The OSG 2985601 is a high-quality spiral flute tap designed for precision cutting. It features a right-hand cutting direction and is suitable for creating screw threads on the inside surfaces of holes. This tap is made from high-speed steel (HSS) with a steam oxide finish for enhanced durability.

• Right-hand flute direction for effective thread cutting.
• Three flutes for improved chip evacuation.
• 1/4-20 thread size with a bottoming chamfer.

Product Highlights

This tap is ideal for use in various applications, including steel, stainless steel, tool steel, die steel, and nickel alloys. It ensures precision, making it suitable for tasks such as automotive engine assembly.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Series: HY-PRO® SEVEN 298I
• Material: HSS
• Thread Size: 1/4-20
• Chamfer Type: 1.5P-2P Bottoming
• Thread Length: 1 in
• Overall Length: 2-1/2 in
• Shank Diameter: 0.255 in
• Flute Direction: Right Hand
• Thread Standard: UNC
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Steel, Stainless Steel, Tool Steel, Die Steel and Nickel Alloys
• Through Coolant: No
