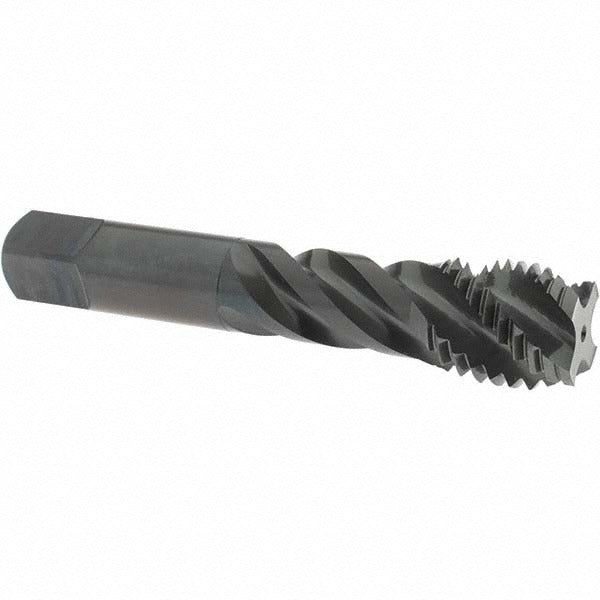

Osg 2944401 Spiral Flute Tap 1-8 Unc 4 Flutes

Product Description

The OSG 2944401 is a spiral flute tap designed for cutting 1-8 UNC right-hand internal threads in a wide range of ferrous materials. It features a 45-degree helix angle and four flutes that evacuate chips upward out of the hole, reducing the risk of chip packing in blind-hole applications. The modified bottoming chamfer allows threading close to the bottom of a bore. Manufactured from vanadium high-speed steel and finished with a steam oxide coating, the tap provides good lubricity and corrosion resistance during cutting operations. Overall length is 5.125 inches with a thread limit of H5.

This tap is suited for production and maintenance machining work where 1-8 UNC threads are required in blind holes or through holes with limited clearance at the bottom. Rated material applications include alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel. The spiral flute design makes it a common choice for CNC tapping centers and manual machines where chip control is a priority. It is sold individually and is appropriate for machine shops, industrial maintenance crews, and toolroom applications.

Key Features

• 45-degree helix angle promotes upward chip evacuation in blind-hole tapping
• Modified bottoming chamfer allows threading close to the bottom of a bore
• Vanadium high-speed steel construction for wear resistance in tough ferrous materials
• Steam oxide coating improves lubricity and reduces galling during cutting
• H5 thread limit for close-tolerance UNC thread production
• Right-hand flute and thread direction for standard CNC and manual tapping setups

Compatibility

Designed to cut 1-8 UNC right-hand internal threads and is compatible with alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel workpieces as specified by the manufacturer.

Installation Notes

Installation and use should be performed by a qualified machinist familiar with tapping speeds, feeds, and cutting fluid requirements for the workpiece material. Secure the workpiece and ensure proper alignment before beginning the tapping operation to avoid tap breakage. Use an appropriate cutting fluid for the material being tapped; dry tapping is not recommended for most ferrous materials. Follow applicable shop safety practices when handling sharp cutting tools.
