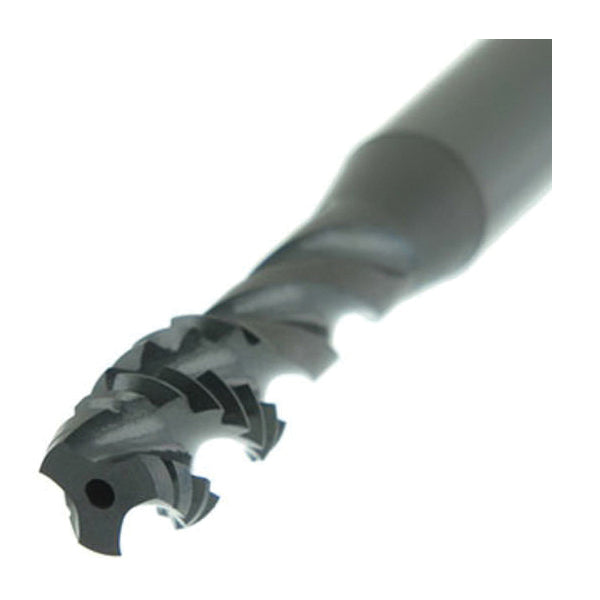

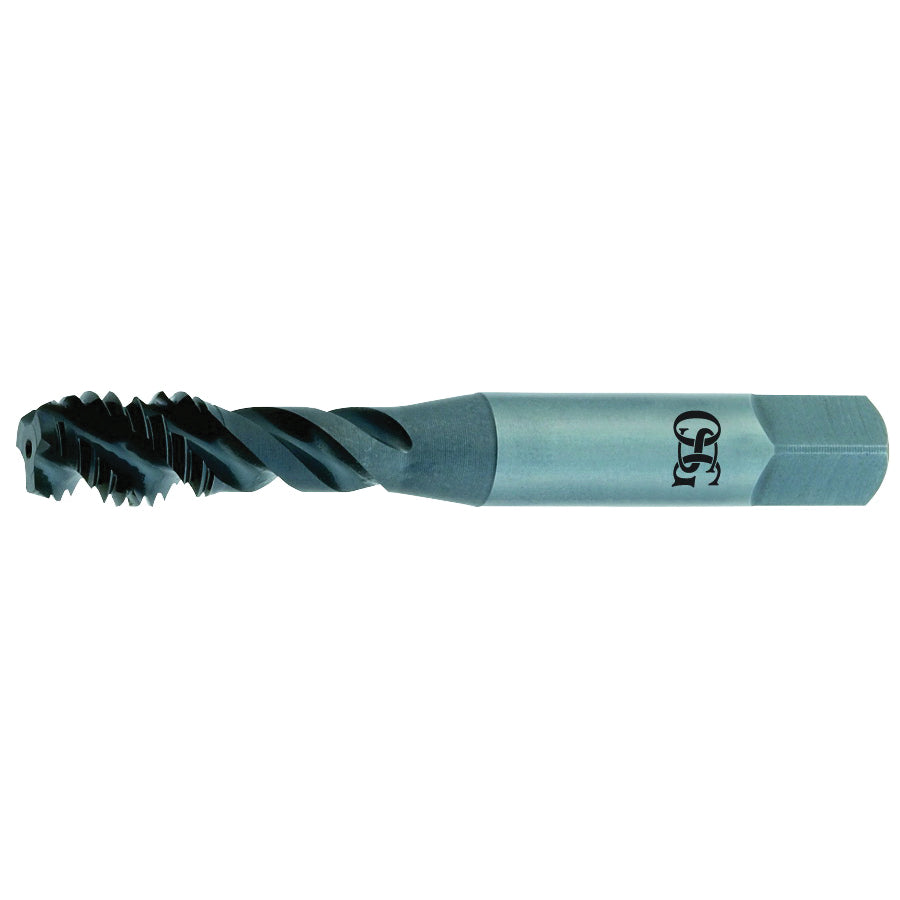

OSG 2936201 HY-PRO 290 Premium Spiral Flute Tap Right Hand Cutting 5/16-24

Product Description

The OSG 2936201 HY-PRO 290 Premium Spiral Flute Tap is designed for precise threading in various materials. This tap features a right-hand cutting action with a thread size of five-sixteenths - twenty-four, made from high-speed steel with steam oxide finish.

• Right-hand cutting design
• Three flutes for efficient chip removal
• Suitable for various materials including alloy steel, cast iron, and stainless steel

Product Highlights

The OSG 2936201 tap provides enhanced durability and precision for threading tasks across multiple material types.

Product Information

Standard Information

• Brand: OSG
• Country of Origin: MX

Technical Specifications

• Size: 5/16 in
• Type: Premium
• Thread Size: 5/16-24
• Chamfer Type: 2.5P-3P Modified Bottoming
• Shank Length: 1-19/32 in
• Thread Limit: H4
• Thread Length: 0.444 in
• Overall Length: 2.72 in
• Shank Diameter: 0.317 in
• Thread Standard: UNF
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Measurement System: Imperial
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, Stainless Steel
• Through Coolant: No
