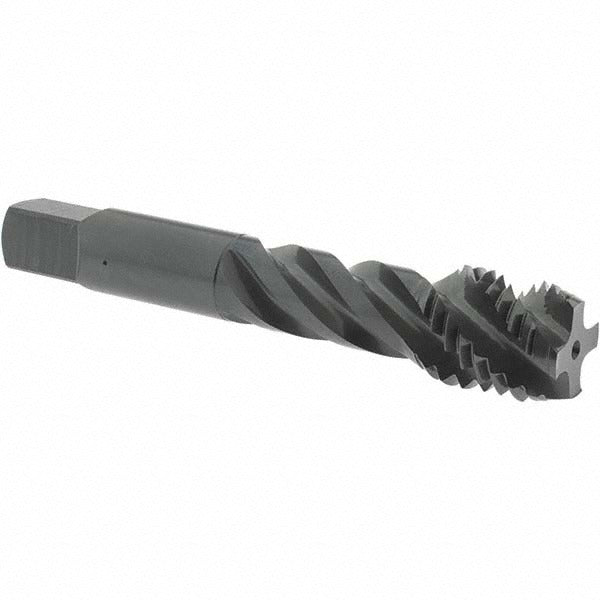

Osg 2933601 Spiral Flute Tap 3/4-10 Unc Vanadium Hss

Product Description

The OSG 2933601 is a spiral flute tap designed for cutting 3/4-10 UNC internal threads in a wide range of ferrous materials. It features a 45-degree helix angle that efficiently evacuates chips up and out of the hole, making it well suited for blind-hole tapping where chip packing is a concern. The tap is ground to an H3 thread limit for consistent dimensional control and carries a steam oxide coating that reduces friction and improves lubrication retention during cutting. Overall length is 4.25 inches. Installation is performed by machinists and toolroom technicians in production and maintenance environments.

This tap is intended for use in alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel. The modified bottoming chamfer allows threading close to the bottom of a blind hole while still providing enough lead to start the tap reliably. The spiral flute geometry and right-hand thread direction make it compatible with standard CNC tapping cycles and hand tapping in right-hand drilling machines. It is a single-piece unit sold individually, suited for low-volume job shop work as well as production runs where dimensional accuracy on 3/4-10 UNC threads is required.

Key Features

• 45-degree right-hand spiral flute for upward chip evacuation in blind holes
• Modified bottoming chamfer for threading close to hole bottom
• H3 thread limit for tight dimensional tolerances on 3/4-10 UNC threads
• Steam oxide coating reduces friction and aids lubrication retention
• Vanadium high-speed steel construction for wear resistance in ferrous materials
• Right-hand thread direction compatible with standard tapping equipment

Compatibility

Designed for cutting 3/4-10 UNC right-hand internal threads in alloy steel, carbon steel, cast iron, stainless steel, die steel, and hardened steel workpieces.

Installation Notes

This tap should be installed in a properly sized tap holder or collet chuck rated for the shank diameter before use. Ensure the workpiece is securely fixtured and the pilot hole is drilled to the correct tap drill diameter for 3/4-10 UNC before beginning the tapping operation. Apply appropriate cutting fluid for the workpiece material to extend tool life and improve thread finish. Never force a tap that has stalled; back it out carefully to clear chips before continuing.
