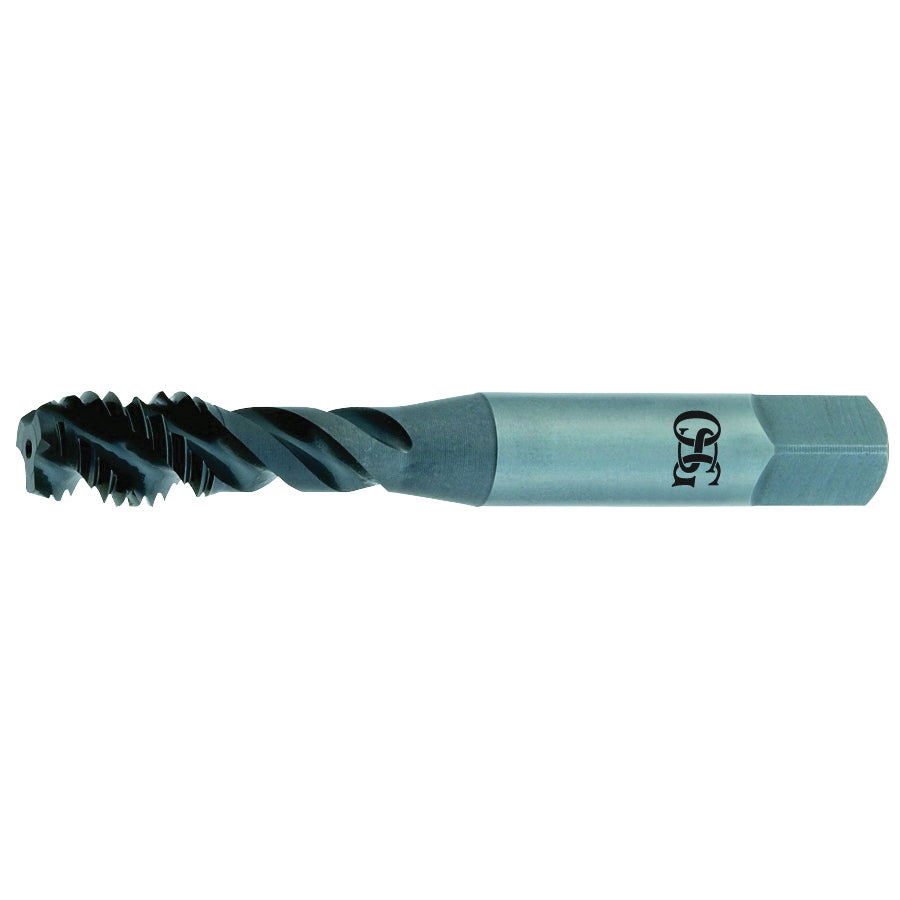

OSG 2931801 HY-PRO 290 Premium Spiral Flute Tap Right Hand Cutting 3/8-24

Product Description

The OSG 2931801 is a HY-PRO spiral flute tap suited for various metalworking tasks. This tap features a right hand cutting design and is effective for creating consistent threads.

• Made of high-speed steel with steam oxide finish
• Designed for 3/8-24 thread sizes with H3 thread limits
• Includes a modified bottoming chamfer for better thread engagement

Product Highlights

HY-PRO taps are versatile tools for multiple material applications including alloy steel and stainless steel.

Product Information

Standard Information

• Brand: OSG
• Manufacturer: OSG

Technical Specifications

• Size: 3/8 in
• Thread Size: 3/8-24
• Number of Flutes: 3
• Cutting Direction: Right Hand
• Shank Diameter: 0.38 in
• Shank Length: 1-21/32 in
• Thread Length: 1/2 in
• Overall Length: 2.93 in
• Chamfer Type: 2.5P-3P Modified Bottoming
• Finish/Coating: Steam Oxide
• Material Application: Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Low/Medium/High Carbon Steel, and Stainless Steel
• Through Coolant: No
